LAPP Cable

Screened data transmission cable with PE core insulation, 7-wire strands and twisted pairs

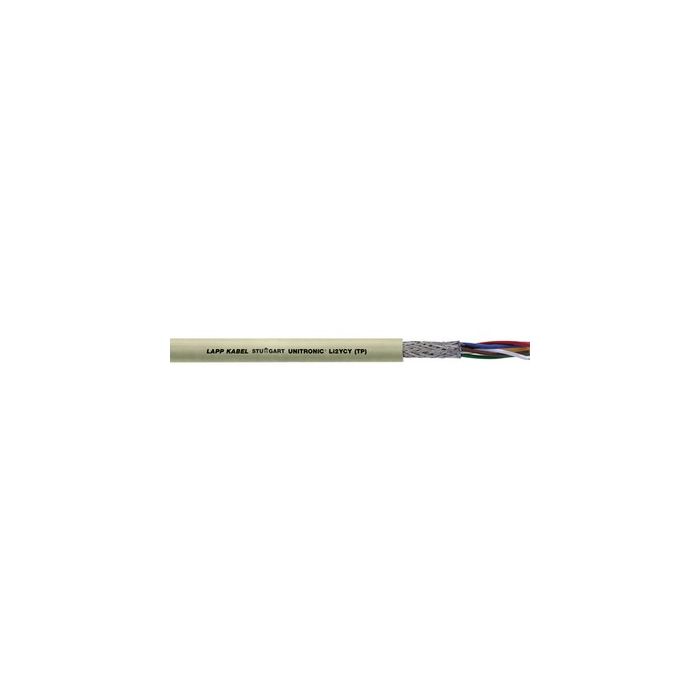

main product photo
UNITRONIC® Li2YCY (TP): Low-frequency low-capacitance screened PVC data cable with DIN 47100 coded Twisted PE single core pairs, RS422/ RS485 interface wiring
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name UNITRONIC® Li2YCY (TP)
Approvals
  • Based on VDE 0812
Extended Description Benefits
  • Overall braid minimises electrical interference
  • Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
Applications
  • Particularly suitable for wiring data systems with transmission rates up to 10 Megabits per second, and is qualified for the RS422 and RS485 interfaces.
  • For fixed and limited flexible installation
  • Can be used in dry or damp rooms |Signal, control- and measuring cable,for transmission of low, sensitive signals and high bit rates
Features
  • Flame-retardant according IEC 60332-1-2
Product make up
  • 7-wire bare stranded copper conductor
  • Core insulation made of polyethylene (PE)
  • TP structure
  • Tinned-copper braiding
  • Outer sheath made of PVC
  • Outer sheath colour: grey (similar to pebble grey/ RAL 7032)
Interference rejecting Yes
Number of conductors 3X2
mm2 per conductor 0.5
Outer Diameter (mm) 9.3
Copper index kg per km 55.0000
Characteristic impedance 100 ± 15 Ohm (> 1 MHz)
Characteristic impedance
  • 100 ± 15 Ohm (> 1 MHz)
Technical Data Core identification code
  • DIN 47100
Conductor stranding
  • Stranded conductor, based on VDE 0881, 7-wire
Minimum bending radius
  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter
Test voltage
  • Core/core: 2000 V
  • Core/screen: 1000 V
Inductivity
  • approx. 0.65 mH/km
Characteristic impedence
  • 100 ± 15 Ohm (> 1 MHz)
Temperature range
  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
Weight kg per km 105.0000
