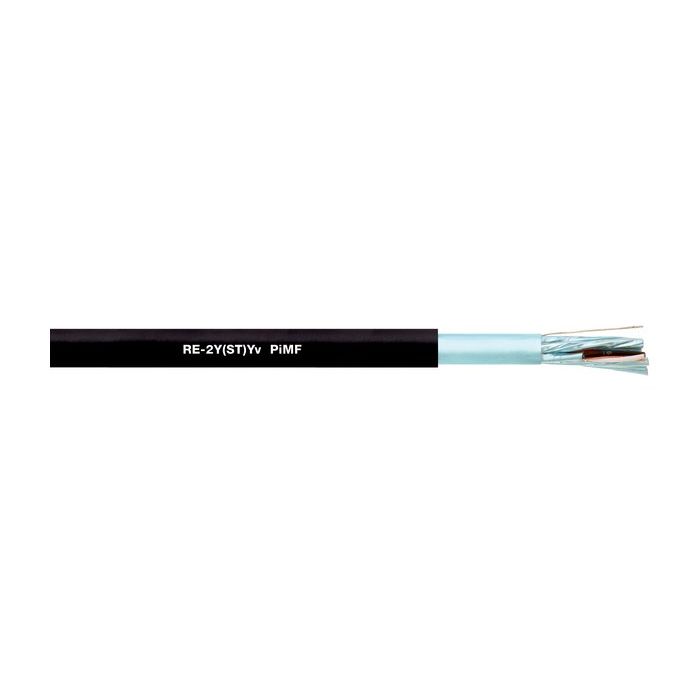

RE-2Y(ST)Yv PiMF: PVC computer data cables, 7 wires, Low capacitance PiMF/ Pairs in metal foil, Screened/ Static Foil, PVC jacket Black or blue, Flame retardant
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Aluminium-laminated plastic foil static screen with tin-plated drain wire minimises the interference of high frequency, electromagnetic fields
Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
Low capacitance due to polyolefin-based insulation
Applications
In measurement and control engineering
Electrically intended for use when modern process computers have to process large volumes of data, e.g. high-capacity computer systems in waste incineration plants or sewage treatment plants
These cables are suitable for fixed installation in dry or damp rooms and, in case of versions with a black outer sheath, also for outdoor use
Thanks to reinforced, nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm, for applications, where a reinforced outer sheath may turn out to be advantageous.
Features
Computer cable with screened pairs and reinforced outer sheath
Outer sheath colour:black for outdoor applications - blue for intrinsically safe systems
Flame-retardant according IEC 60332-1-2
Product make up
7-wire bare stranded copper conductor, core insulation made of polyethylene (PE), cores twisted into pairs, pair screening made of aluminium-laminated plastic foil with bare copper drain wire, PiMF marking using numbered foil, pairs stranded in layers
Complete stranding contains 1 core for communication (core colour orange); the communication core is omitted on single-pair versions
Aluminium-laminated plastic foil static screen with tinned drain wire
Reinforced outer sheath made of PVC
Outer sheath colour: black (RAL 9005) or blue (RAL 5015)
Interference rejecting
Yes
Number of conductors
2X2
mm2 per conductor
0.5
Outer Diameter (mm)
10
Copper index kg per km
35.0000
Characteristic impedance
approx. 100 ohms
Characteristic impedance
approx. 100 ohms
Conductor resistance HTML
0.5 mm²: max. 39.2 ohm/km
1.3 mm²: max. 14.2 ohm/km
Technical Data
Core identification code
a-core: black; b-core: white with consecutive numbers: 1-1, 2-2, 3-3, 4-4 etc.
Minimum bending radius
Occasional flexing: 15 x outer diameter |Fixed installation: 7.5 x outer diameter
