0032803

0032803

LAPP Cable

Screened data transmission cable with PUR outer sheath for harsh conditions

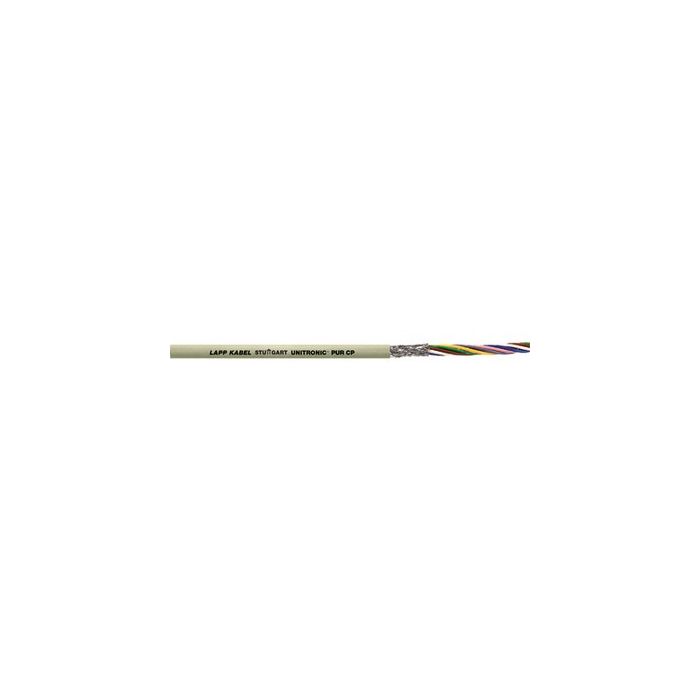

main product photo
UNITRONIC® PUR CP: Low-frequency data cable, VDE 0812 styled, PVC cores DIN 47100 coded, Screened, PUR jacket, Outdoor, Flame retardant, Oil/ Abrasion resistant
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name UNITRONIC® PUR CP
Approvals
  • Based on VDE 0812
Extended Description Benefits
  • Data transmission cable with PUR sheath for increased mechanical stress, wear- and tear-resistant
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Overall braid minimises electrical interference
Applications
  • Further development of the UNITRONIC® range for harsher ambient conditions where robust and screened cables in small dimensions are required.
Features
  • Low-adhesive surface
  • PUR outer sheath is resistant to most oilsand hydraulic fluids
  • Special notch and tear-resistance
  • Good UV-resistance
  • Flame-retardant according IEC 60332-1-2
Product make up
  • Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
  • Core insulation made of PVC
  • Tinned-copper braiding
  • Outer sheath made of PUR
  • Outer sheath colour: pebble grey (RAL 7032)
UV Resistant Yes
Interference rejecting Yes
Number of conductors 5
mm2 per conductor 0.25
Outer Diameter (mm) 5.6
Copper index kg per km 29.0000
Technical Data Core identification code
  • DIN 47100
Conductor stranding
  • Stranded, fine-wire 0.34 mm²: 7-wire
Minimum bending radius
  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter
Inductivity
  • approx. 0.65 mH/km
Temperature range
  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
Weight kg per km 55.0000
More Information
Attribute Value
Data Sheet Click here to view
