LAPP Cable

Screened data transmission cable with PUR outer sheath for harsh conditions

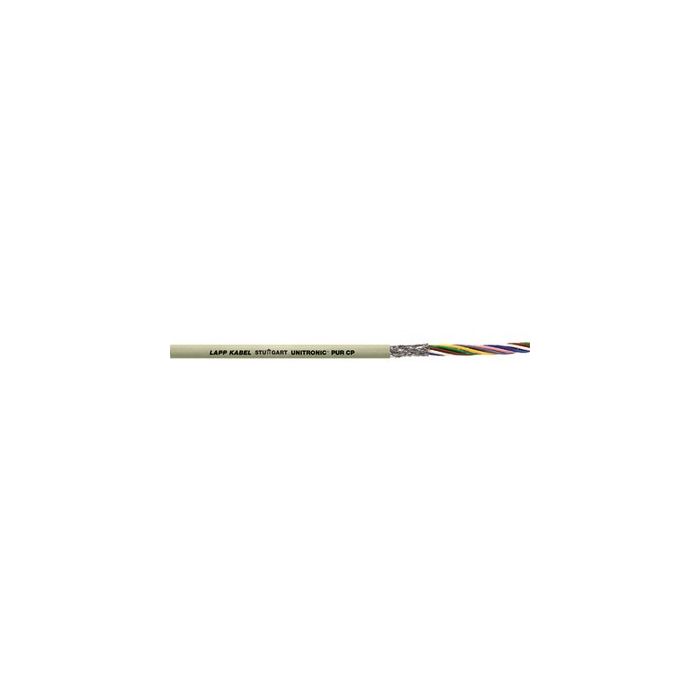

main product photo
UNITRONIC® PUR CP: Low-frequency data cable, VDE 0812 styled, PVC cores DIN 47100 coded, Screened, PUR jacket, Outdoor, Flame retardant, Oil/ Abrasion resistant
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name UNITRONIC® PUR CP
Approvals
  • Based on VDE 0812
Extended Description Benefits
  • Data transmission cable with PUR sheath for increased mechanical stress, wear- and tear-resistant
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Overall braid minimises electrical interference
Applications
  • Further development of the UNITRONIC® range for harsher ambient conditions where robust and screened cables in small dimensions are required.
Features
  • Low-adhesive surface
  • PUR outer sheath is resistant to most oilsand hydraulic fluids
  • Special notch and tear-resistance
  • Good UV-resistance
  • Flame-retardant according IEC 60332-1-2
Product make up
  • Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
  • Core insulation made of PVC
  • Tinned-copper braiding
  • Outer sheath made of PUR
  • Outer sheath colour: pebble grey (RAL 7032)
UV Resistant Yes
Interference rejecting Yes
Number of conductors 12
mm2 per conductor 0.25
Outer Diameter (mm) 7.7
Copper index kg per km 59.0000
Technical Data Core identification code
  • DIN 47100
Conductor stranding
  • Stranded, fine-wire 0.34 mm²: 7-wire
Minimum bending radius
  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter
Inductivity
  • approx. 0.65 mH/km
Temperature range
  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
Weight kg per km 91.0000
