LAPP Cable

Data transmission cable with copper wrapping and PUR outer sheath

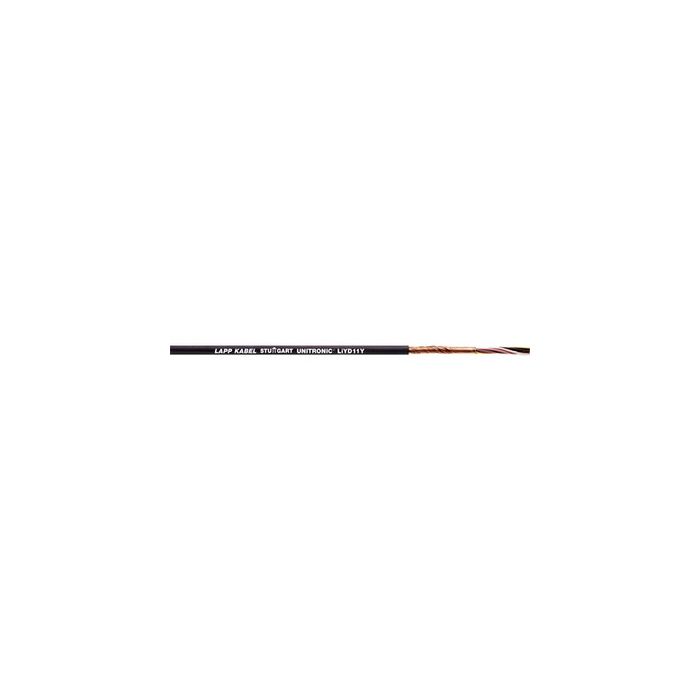

main product photo
UNITRONIC® LiYD11Y: black PUR outdoor data cable, overall copper wrapping screen, PVC cores, DIN 47100, Spiralizable, Flexible -5°C to +70°C, Abrasion resistant
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name UNITRONIC® LiYD11Y
Approvals
  • Based on VDE 0812
Extended Description Benefits
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Applications
  • Intended for use in industrial environments, where cables should have excellent mechanical and chemical resistance.
  • Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances.
  • Can be used in dry or damp rooms
  • Outdoor use is possible within the indicated operating temperature range
Features
  • PUR outer sheath, tear and notch-resistant, resistant to mineral oils and abrasion
  • Low-adhesive surface
  • Good UV-resistance
  • Flame retardant according to IEC 60332-2-2
  • Spiral versions with similar properties are also availabe: UNITRONIC® SPIRAL
Product make up
  • Extra-fine wire strand made of bare copper wires
  • Core insulation made of PVC
  • Wrapped with bare copper wires
  • Outer sheath made of PUR
  • Outer sheath colour: black (RAL 9005)
UV Resistant Yes
Interference rejecting Yes
Number of conductors 6
mm2 per conductor 0.25
Outer Diameter (mm) 6.8
Copper index kg per km 26.1
Technical Data Core identification code
  • DIN 47100 without colour repetition
Conductor stranding
  • Stranded, extra-fine wire
Minimum bending radius
  • Occasional flexing: 10 x outer diameter
  • Fixed installation: 6 x outer diameter
Inductivity
  • approx. 0.65 mH/km
Temperature range
  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
Weight kg per km 49.0000
