LAPP Cable

Installation cable in accordance with DIN VDE 0815 with PE core insulation

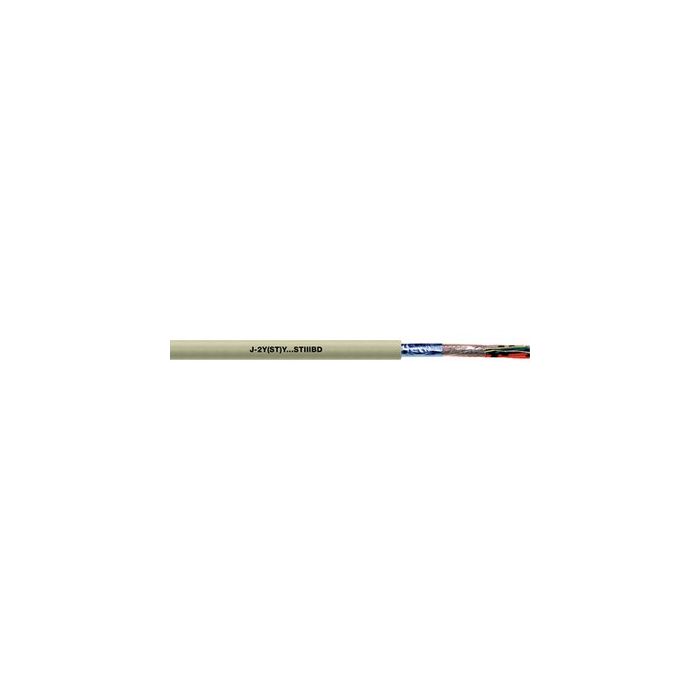

main product photo
J-2Y(ST)Y...ST III BD indoor telecommunication installation cable, VDE 0815 style, static screen, high transmission speed through low capacitance and star quads
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name J-2Y(ST)Y...ST III BD
Approvals
  • Based on DIN VDE 0815
Extended Description Benefits
  • Suitable for data transmission rates of up to 16 Mbits/s
  • Aluminium-laminated plastic foil static screen with tin-plated drain wire minimises the interference of high frequency, electromagnetic fields
Applications
  • Connection cable for use in electronics and in measurement, control and signal applications
  • Examples of use: for connecting EDP system units or for circuits for airfield lighting, ISDN private branch exchanges, operating data acquisition, operating data entry, access control and time recording systems, industrial electronics, all designed for maximum security and speed
  • Can be used in dry and wet interiors for fixed installation on and under plaster
Features
  • Flame-retardant according IEC 60332-1-2
Product make up
  • Solid bare copper conductor
  • Core insulation made of polyethylene (PE)
  • Cores twisted into star quads, 5 star quads are twisted into a bundle, bundles stranded in layers
  • Foil wrapping
  • static screening made of aluminium-laminated plastic film with copper
  • drain wire
  • Outer sheath made of PVC
  • Outer sheath colour: grey (similar to pebble grey/ RAL 7032)
Interference rejecting Yes
Number of conductors 4X2
mm2 per conductor 0.6
Outer Diameter (mm) 7.5
Copper index kg per km 24.0000
Characteristic impedance 100 Ω ± 15%
Characteristic impedance
  • 100 Ω ± 15%
Conductor resistance HTML
  • max. 130 ohm/km
Technical Data Core identification code
  • Based on DIN VDE 0815
Conductor stranding
  • 0.6 mm: 0.28 mm²
Minimum bending radius
  • Fixed installation: 10 x outer diameter
Test voltage
  • Core/core: 500 V
  • Core/screen: 2000 V
Characteristic impedence
  • 100 Ω ± 15%
Conductor resistance
  • max. 130 ohm/km
Temperature range
  • Occasional flexing: -5°C to +50°C
  • Fixed installation: -30°C to +70°C
Weight kg per km 60.0000
More Information
Attribute Value
Data Sheet Click here to view
