LAPP Cable

Static screened installation cable for industrial electronics

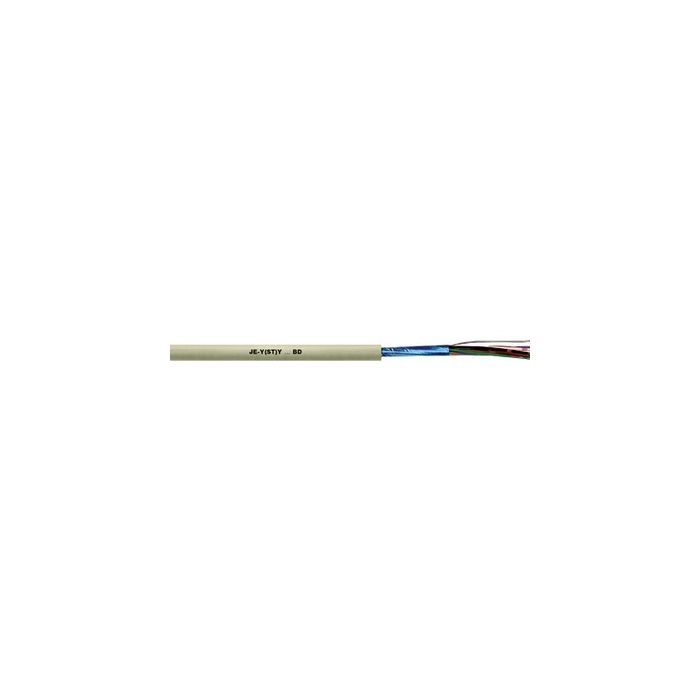

main product photo
JE-Y(ST)Y...BD installation cable for industrial electronics, VDE 0815, PVC, solid conductor, pairs, bundle laying, screened/ static foil, stationary use
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name JE-Y(ST)Y...BD
Approvals
  • In accordance with DIN VDE 0815type JE-Y(ST)Y...BD
Extended Description Benefits
  • Perfect for cost-effective installation, e.g. connections with insulation displacement technology (IDC).
  • Aluminium-laminated plastic foil static screen with tin-plated drain wire minimises the interference of high frequency, electromagnetic fields
  • Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
Features
  • The 2-pair version (2x2x0.8) is twisted into a star quad
  • Flame-retardant according IEC 60332-1-2
  • JE-Y(ST)Y...BD EB: For intrinsically safe circuits (type of protection i - intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2
Product make up
  • Solid bare copper conductor
  • Core insulation made of PVC
  • 2 cores twisted into a pair, and 4 pairs into units (for 2 x 2 x 0.8 as star quad cable)
  • Foil wrapping, static screening made of aluminium-laminated plastic film with copper drain wire
  • Outer sheath made of PVC
  • Outer sheath colour: grey (similar to pebble grey/ RAL 7032)
Interference rejecting Yes
Number of conductors 20X2
mm2 per conductor 0.8
Outer Diameter (mm) 16
Copper index kg per km 206.0000
Conductor resistance HTML
  • max. 73.2 Ohm/km
Technical Data Core identification code
  • according to VDE 0815
Conductor stranding
  • Single-wire (solid conductor) 0.8 mm: 0.50 mm²
Minimum bending radius
  • Fixed installation: 6 x outer diameter
Test voltage
  • Core/core: 500 V
  • Core/screen: 2000 V
Inductivity
  • approx. 0.65 mH/km
Conductor resistance
  • max. 73.2 Ohm/km
Temperature range
  • Occasional flexing: -5°C to +50°C
  • Fixed installation: -30°C to +70°C
Weight kg per km 350.0000
