LAPP Cable

Screened data transmission cable for industrial electronics

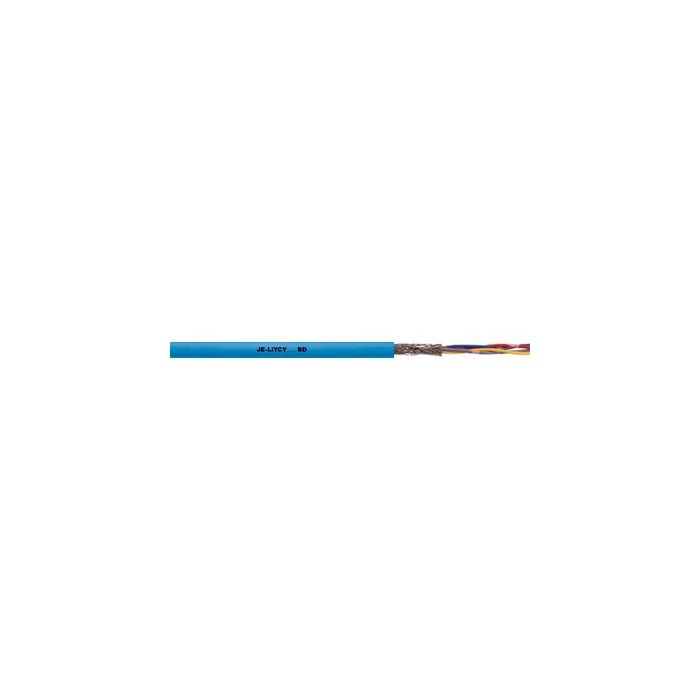

main product photo
JE-LiYCY...BD EB installation cable for industrial electronics, VDE 0815, PVC, pairs, screened, Maxi TERMI-POINT® wiring, blau, intrinsically safe circuits
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name JE-LiYCY...BD EB
Approvals
  • In accordance with DIN VDE 0815type JE-LiYCY...BD
Extended Description Benefits
  • Overall braid minimises electrical interference
  • Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
Applications
  • Connection cable for use in electronics and in measurement, control and signal applications
  • This cable is also used as a pulse and data transmission cable
  • JE-LiYCY...BD has also proved to be an efficient connection cable for telephone systems, e.g. paging and intercom systems.
  • For fixed installation on and under plaster, in dry and damp rooms
Features
  • The 2-pair version (2 x 2 x 0.5) is twisted into a star quad
  • Flame-retardant according IEC 60332-1-2
  • JE-LiYCY...BD EB: For intrinsically safe circuits (type of protection i - intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2
Product make up
  • 7-wire bare stranded copper conductor
  • Core insulation made of PVC
  • 2 cores twisted into a pair, and 4 pairs into units/ bundles (for 2 x 2 x 0.5 as star quad cable)
  • Bundles twisted in layers, foil wrapping, screening braid made of tinned copper wires
  • Outer sheath made of PVC
  • Outer sheath colour: sky blue (RAL 5015)
Interference rejecting Yes
Number of conductors 12X2
mm2 per conductor 0.5
Outer Diameter (mm) 12.8
Copper index kg per km 193.0000
Conductor resistance HTML
  • max. 78.4 ohm/km
Technical Data Core identification code
  • according to VDE 0815
Conductor stranding
  • Multi-wire, 7 x 0.3mm
Minimum bending radius
  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 5 x outer diameter
Test voltage
  • Core/Core: 1000 V
  • Core/screen: 2000 V
Inductivity
  • approx. 0.65 mH/km
Conductor resistance
  • max. 78.4 ohm/km
Temperature range
  • Occasional flexing: -5°C to +50°C
  • Fixed installation: -30°C to +70°C
Weight kg per km 340.0000
More Information
Attribute Value
Data Sheet Click here to view
