LAPP Cable

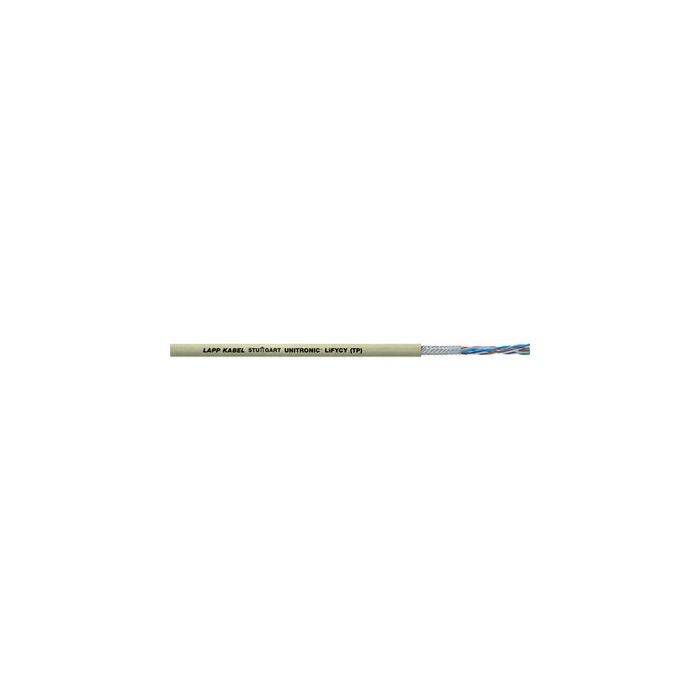

Screened miniature data transmission cable
UNITRONIC® LiFYCY (TP): Low-frequency PVC data cable, Extra-fine wire strand, 0.08 mm², Twisted pairs, Screened, Space-saving installation, IEC flame retardant
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
0034231 Specifications
- Very small dimensions
- Flame-retardant according IEC 60332-1-2
| Attribute | Value |
|---|---|
| Product Brand Name | UNITRONIC® LiFYCY |
| Extended Description |
Benefits
|
| Benefits | Space-saving installation due to small cable diameters | Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects) | Overall braid minimises electrical interference |
| Flame Retardant | Yes |
| Interference rejecting | Yes |
| Number of conductors | 4X2 |
| mm2 per conductor | 0.08 |
| Outer Diameter (mm) | 5.4 |
| Copper index kg per km | 19.4 |
| Core Identification Code | DIN 47100 |
| Benefits |
|
| Product Make Up |
|
| Product Make Up | Extra-fine wire strand made of bare copper wires | Core insulation made of PVC | TP structure | Tinned-copper braiding | Outer sheath made of PVC | Outer sheath colour: grey (similar to pebble grey/ RAL 7032) |
| Inductivity | approx. 0.65 mH/km |
| Core Identification Code HTML |
|
| Conductor Stranding | Stranded, extra-fine wire, cross-section 0.08 mm² |
| Conductor Stranding HTML |
|
| Minimum Bending Radius | Occasional flexing: 7.5 x outer diameter | Fixed installation: 4 x outer diameter |
| Minimum Bending Radius |
|
| Temperature Range |
|
| Technical Data |
Core identification code
|
| Applications |
|
| Weight kg per km | 37 |
| Temperature Range | Occasional flexing: -5°C to +70°C | Fixed installation: -40°C to +80°C |
| Applications | For protection against high-frequency interference, screened, fine-wire cables are used in many devices. | Wherever screened cables with smallest dimensions are required | Examples: microelectronics, hearing aids etc. |
| Features | Very small dimensions | Flame-retardant according IEC 60332-1-2 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
