LAPP Cable

Screened data transmission cable with copper-wrapped twisted pairs

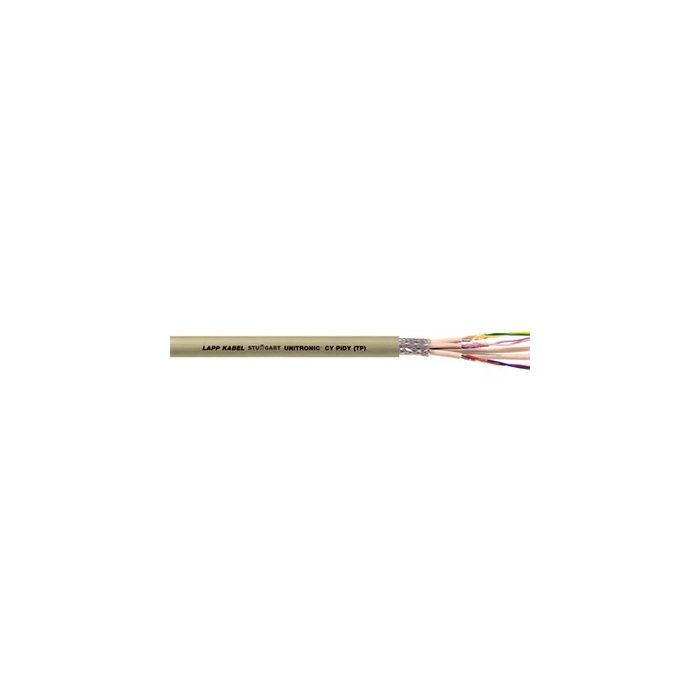

main product photo
UNITRONIC® CY PiDY (TP): Low-frequency data cable, Flexible, PVC, Screened, Twisted Pairs with copper wrapping screen, Inner sheath, Grey, IEC flame retardant
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name UNITRONIC® CY PiDY
Approvals
  • Based on VDE 0812
Extended Description Benefits
  • Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
  • Individually screened pairs and the overall braid minimise electrical interference
Applications
  • Cable should be used in areas with high levels of electromagnetic interferences
  • Data processing, process control systems, machining centres, security systems and electronics
  • Suitable for the transmission with varying in frequency and voltage or sensitive signals
  • For fixed installation and flexible use
  • Dry or damp rooms
Features
  • The cable remains flexible despite multiple screening
  • Flame-retardant according IEC 60332-1-2
Product make up
  • Fine-wire strand made of bare copper wires
  • Core insulation made of PVC
  • Cores twisted into pairs
  • Copper wrapping over pairs
  • Inner sheath made of PVC over screened pairs
  • Tinned-copper braiding
  • Outer sheath made of PVC
  • Outer sheath colour: grey (similar to pebble grey/ RAL 7032)
Flame Retardant Yes
Interference rejecting Yes
Number of conductors 16x2
mm2 per conductor 0.25
Outer Diameter (mm) 19.3
Copper index kg per km 316.7
Technical Data Core identification code
  • Based on VDE 0812
Conductor stranding
  • Stranded conductor, fine-wire
Minimum bending radius
  • Fixed installation: 6 x outer diameter
Inductivity
  • approx. 0.65 mH/km
Temperature range
  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
Weight kg per km 542.0000
