LAPP Cable

Data transmission cable with colour code acc. to DIN 47100 and twisted pairs

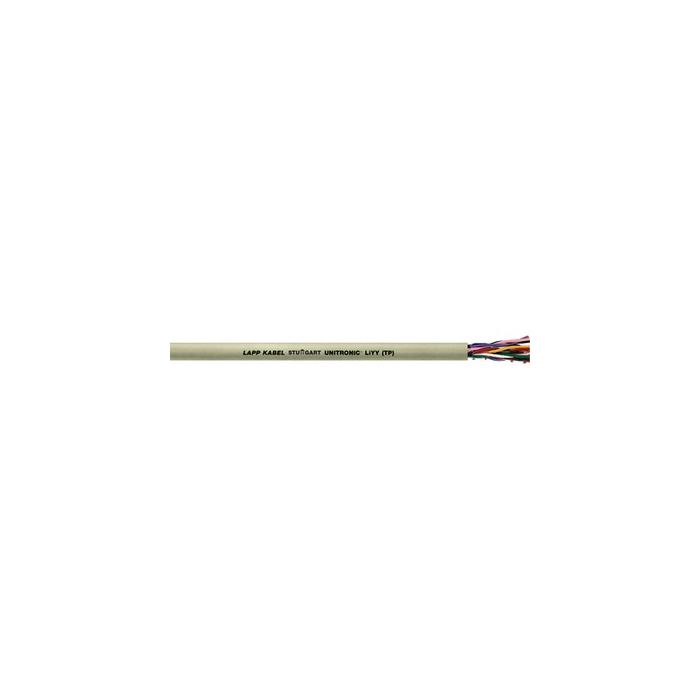

main product photo
UNITRONIC® LiYY (TP): Low-frequency PVC data cable DIN 47100 coded, Flexible, 0.34mm² Maxi TERMI-POINT®, Twisted Pairs, Flame retardant, Instrumentation Control
Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name UNITRONIC® LiYY
Approvals
  • Based on VDE 0812
Extended Description Benefits
  • Decoupling of circuits and limiting cross talk by means of twisted-pair design
Applications
  • Electronic devices tend to leave little room for installing cables, meaning short travel distances and small bending radii are required. This cable ideally meets these requirements.
  • Dry or damp rooms
Features
  • Twisted in pairs to reduce decoupling
  • Flame-retardant according IEC 60332-1-2
Product make up
  • Fine-wire strand made of bare copper wires
  • Core insulation made of PVC
  • TP structure
  • Outer sheath made of PVC
  • Outer sheath colour: grey (similar to pebble grey/ RAL 7032)
Flame Retardant Yes
Interference rejecting Yes
Number of conductors 6X2
mm2 per conductor 0.25
Outer Diameter (mm) 7.9
Copper index kg per km 28.8
Technical Data Core identification code
  • DIN 47100
Conductor stranding
  • Fine copper wire strands
Minimum bending radius
  • Occasional flexing: 10 x outer diameter
  • Fixed installation: 4 x Outer diameter
Inductivity
  • approx. 0.65 mH/km
Temperature range
  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
Weight kg per km 80.0000
More Information
Attribute Value
Data Sheet Click here to view
