0038304
0038304
LAPP Cable

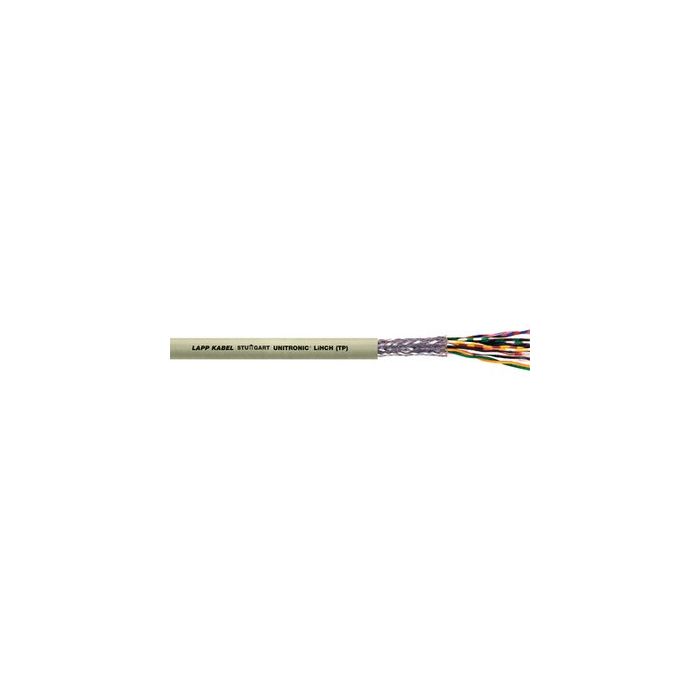

Screened halogen-free data transmission cable with colour code acc. to DIN 47100 and twisted pairs
UNITRONIC® LiHCH (TP): Low-frequency halogen-free data cable flexible (0.34 mm² multi-wire Maxi TERMI-POINT®) 47100 low capacitance, low smoke density, screened
More Information
| Attribute |
Value |
| Product Brand Name |
UNITRONIC® LiHCH (TP) |
| Approvals |
|
| Extended Description |
Benefits- Halogen-free: to protect human life and valuable assets in the event of a fire, through low smoke density and low amount of corrosive gases
- Low capacitance due to polyolefin-based insulation
- Overall braid minimises electrical interference
- Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
Applications- Suitable for areas with a high density of people as well as high-value property that must be protected in the event of a fire
- For use within public buildings, transport systems and industrial plants
- For data processing, measurement and control engineering, safety related systems and as electronics cable
- For use in computer systems, instrumentation systems, office equipment, balances - wherever screened, halogen-free, small-diameter cables are needed.
Features- Flame-retardant according IEC 60332-1-2
- Low smoke zero halogen (LSZH)
- Halogen-free as per IEC 60754-1, Low corrosivity/ acidity of combustion gases per IEC 60754-2, Low toxicity of comb. gases per EN 50305
- Low smoke density according to IEC 61034-2
Product make up- Fine-wire strand made of bare copper wires
- Core insulation made of special halogen-free compound
- TP structure
- Tinned-copper braiding
- Outer sheath made of special halogen-free compound
- Outer sheath colour: pebble grey (RAL 7032)
|
| Halogen free |
Yes |
| Interference rejecting |
Yes |
| Number of conductors |
4X2 |
| mm2 per conductor |
0.14 |
| Outer Diameter (mm) |
6.4 |
| Copper index kg per km |
26.6 |
| Technical Data |
Core identification code- DIN 47100 without colour repetition
Conductor strandingMinimum bending radius- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltageInductivityTemperature range- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
|
| Weight kg per km |
54.0000 |
