02021602302
02021602302
Harting

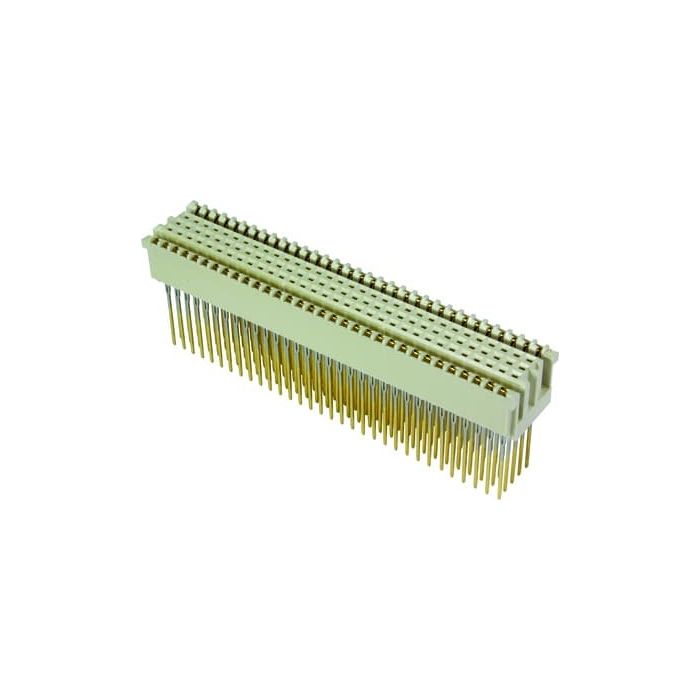

DIN-Signal harbus64-160FP-17C1-2w/oFl
Connectors, Female connector, Press-in termination, Rated current:1 A, Contacts: 160, Straight, Copper alloy, Noble metal, Mating side, Nickel plated, Termination side, Performance level: 2, acc. to IEC 61076-4-113, PCB fixing: Without fixing flange, Liquid crystal polymer (LCP), Beige
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | har-bus 64 female |
| Product Family | DIN Signal |
| Product Brand Name | 02 02 160 2302 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 20 |
| Quantity Interval | 20 |
| Country of origin | DE |
| Number of poles | 160 |
| Material contact surface | Noble metal |
| Material of insulation | Liquid crystal polymer |
| Direction mating face | Standard |
| Coating plug contact area | Noble metal |
| Number of rows | 5 |
| Type of PCB contacting | Press-in |
| Grid dimensions 1 (mm) | 2.54 |
| Grid dimensions 2 (mm) | 2.54 |
| Assembly | Without fixing flange |
| Suitable for printed circuit board thickness (mm) | 1.6 |
| Pin length (mm) | 17 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 1 |
| Temperature Range | -40 to 105 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
