02050000005
02050000005
Harting

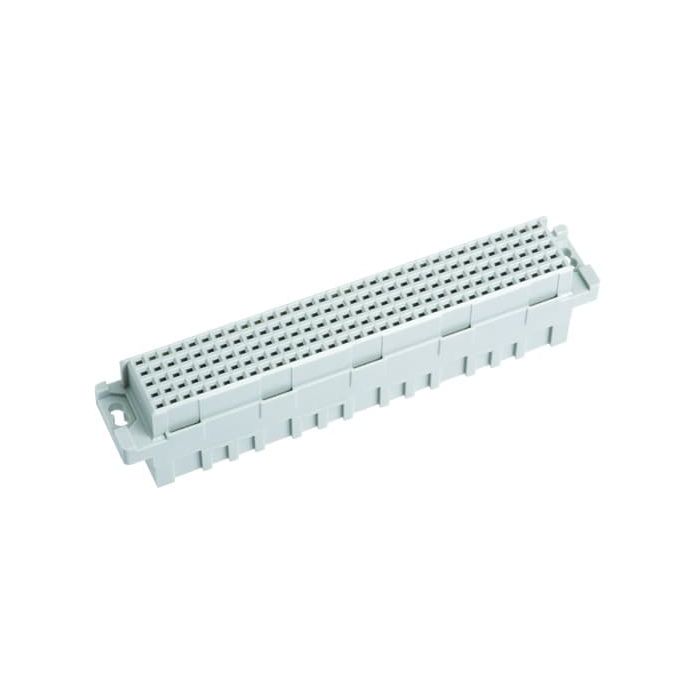

DIN-Signal harbus64-160FC-B
Connectors, Female connector, Crimp termination, Contacts: 160, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | Other har-bus 64 |
| Product Family | DIN Signal |
| Product Brand Name | 02 05 000 0005 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 20 |
| Quantity Interval | 20 |
| Country of origin | DE |
| Number of poles | 160 |
| Material of insulation | Thermoplast |
| Number of rows | 5 |
| Type of PCB contacting | Crimp termination |
| Grid dimensions 1 (mm) | 2.54 |
| Grid dimensions 2 (mm) | 2.54 |
| Assembly | With fixing flange |
| Fire resistance class | V0 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
