09000005092
09000005092
Harting

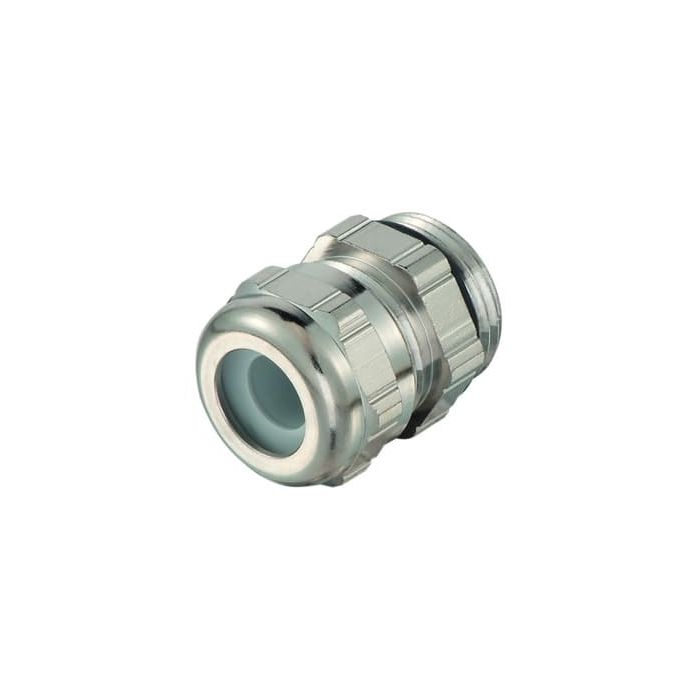

Acces. Uni Seal White PG 21 min 11.5 max
Cable gland, Pg 21, Clamping range: 11.5 ... 15.5 mm, Material (cable glands): Metal, IP68, Wrench size: 30
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 432 Cable Glands |
| Product Family | Cable Glands metal |
| Product Brand Name | 09 00 000 5092 |
| Manufacturer | HARTING |
| Colour | White |
| Customs tariff number | 84849000 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | DE |
| Degree of protection - IP (mounted) | IP68 |
| Maximum operating ambient temperature (deg C) | 130.0000 |
| Wrench width 1 (mm) | 30.0000 |
| Size of connection thread | PG21 |
| Thread type of cable gland | PG |
| Material | Metal film |
| Minimum cable diameter (mm) | 11 - 20 |
| Maximum cable diameter (mm) | 11 - 20 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
