09021646921
09021646921
Harting
DIN-Signal B064MS-3,0C1-2

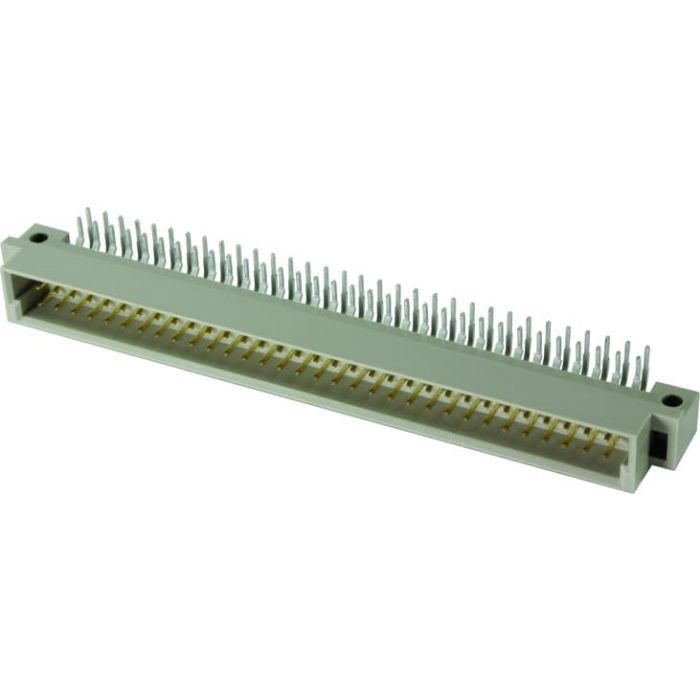

Connectors, Male connector, Wave soldering termination, Rated current:2 A, Contacts: 64, Angled, Copper alloy, Noble metal, Mating side, Sn over Ni, Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£3.33
| Attribute | Value |
|---|---|
| Product Segment | BC male |
| Product Family | DIN Signal |
| Product Brand Name | 09 02 164 6921 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 130 |
| Quantity Interval | 130 |
| Country of origin | DE |
| Material contact surface | Noble metal |
| Number of poles | 64 |
| Material of insulation | Thermoplast |
| Direction mating face | turned |
| Coating plug contact area | Noble metal |
| Number of rows | 2 |
| Type of PCB contacting | THT connection (Wave soldering) |
| Grid dimensions 1 (mm) | 2.54 |
| Grid dimensions 2 (mm) | 2.54 |
| Assembly | With fixing flange |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 2 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
