09030963214
09030963214
Harting

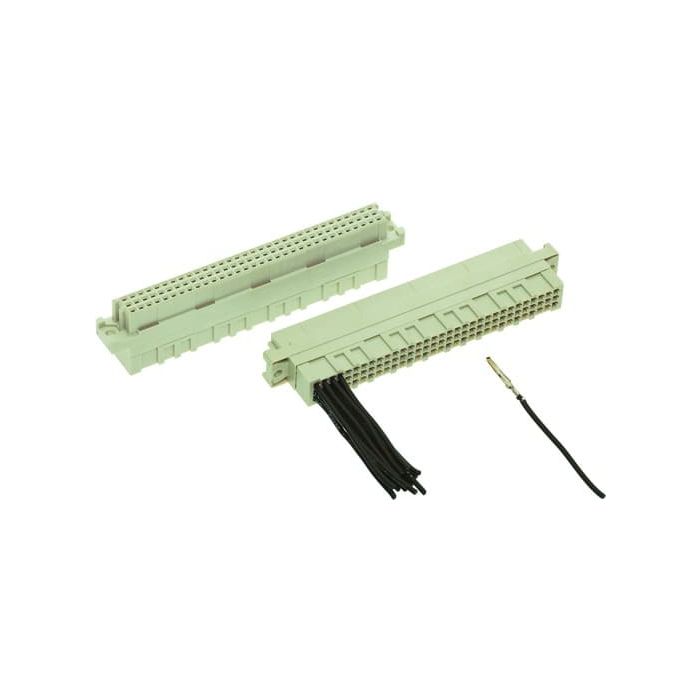

DIN-Signal C096FC-B
Connectors, Female connector, Crimp termination, Contacts: 96, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Other DIN signal |
| Product Family | DIN Signal |
| Product Brand Name | 09 03 096 3214 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 150.0000 |
| Quantity Interval | 150.0000 |
| Country of origin | DE |
| Number of poles | 96.0000 |
| Material of insulation | Thermoplast |
| Number of rows | 3.0000 |
| Type of PCB contacting | Crimp termination |
| Grid dimensions 1 (mm) | 2.54 |
| Grid dimensions 2 (mm) | 2.54 |
| Assembly | With fixing flange |
| Fire resistance class | V0 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
