09060008474
09060008474
Harting

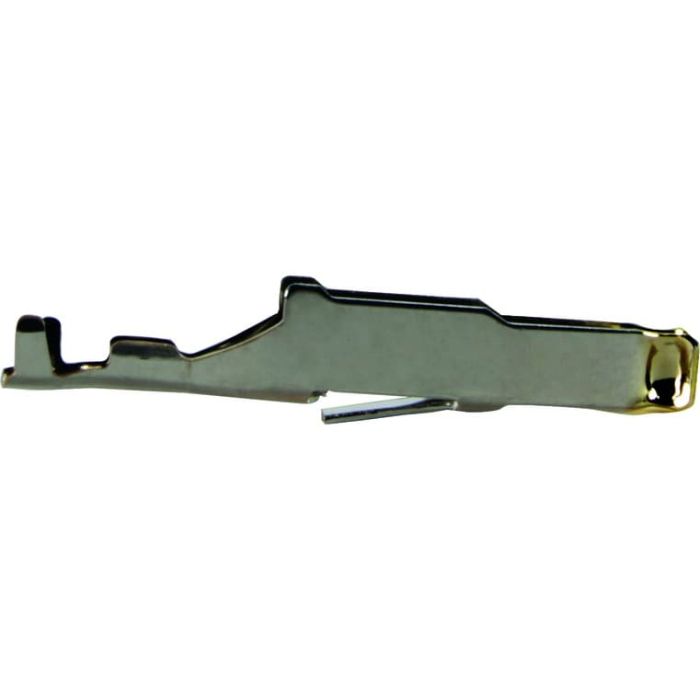

DIN-Power crimp 1,F, PL1, Einzel
Crimp contact, Copper alloy, Noble metal, Mating side, Nickel plated, Termination side, Conductor cross-section: 0.09...0.25 mm for FC 1 contacts, AWG 24 ... AWG 28 for FC 1 contacts
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | F female |
| Product Family | DIN Power |
| Product Brand Name | 09 06 000 8474 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1000.0000 |
| Quantity Interval | 1000.0000 |
| Country of origin | DE |
| Material contact surface | Noble metal |
| Insertion cycles minimum | 500.0000 |
| Contact type | Punched |
| Insulation stripped length (mm) | 3.5 |
| Contact design | female |
| Maximum connectable conductor cross section (mm2) | 0.25 |
| Minimum connectable conductor cross section (mm2) | 0.09 |
| Material contact | Other copper alloys |
| Standards | IEC 60603-2 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
