09062312881
09062312881
Harting

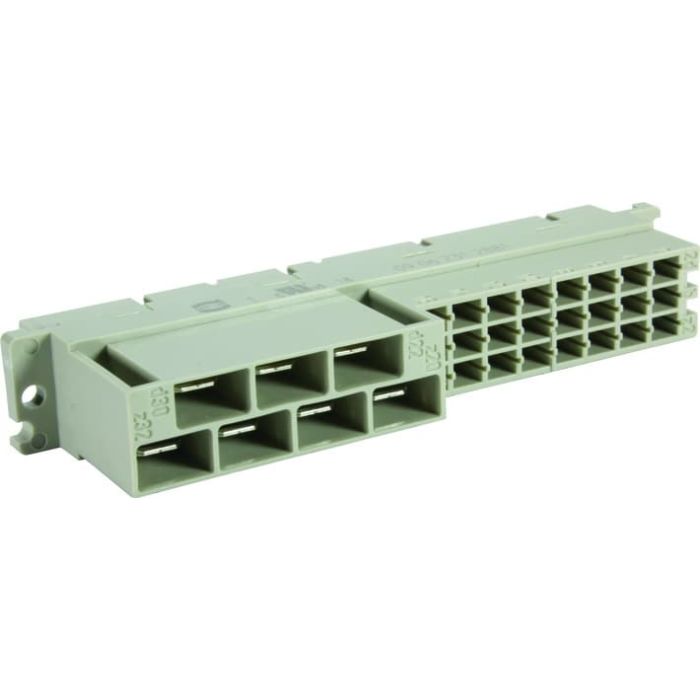

DIN-Power MH24+7FTC1-1
Connectors, Female connector, Crimp termination, Faston termination, Rated current:6 A,15 A, Contacts: 31, Copper alloy, Silver plated, Mating side, power contacts, Silver plated, Termination side, power contacts, Coding: Hole coding, Shroud coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Other DIN power |
| Product Family | DIN Power |
| Product Brand Name | 09 06 231 2881 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 20.0000 |
| Quantity Interval | 20.0000 |
| Country of origin | DE |
| Number of poles | 31.0000 |
| Material contact surface | Silver |
| Material of insulation | Thermoplast |
| Coating plug contact area | Silver (Ag) |
| Type of PCB contacting | Crimp termination |
| Grid dimensions 1 (mm) | 3.81 |
| Assembly | With fixing flange |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 6.0000 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
