Harting

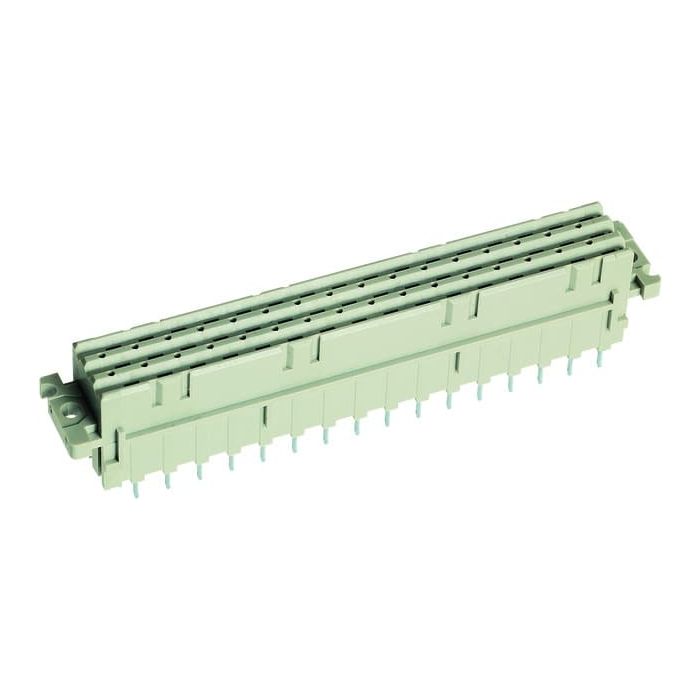

DIN-Power F032FS-4,5C1-2
Connectors, Female connector, Wave soldering termination, Rated current:6 A, Contacts: 32, Straight, Copper alloy, Noble metal, Mating side, Sn over Ni, Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, Shroud coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
In stock
| Attribute | Value |
|---|---|
| Product Segment | DEF female solder |
| Product Family | DIN Power |
| Product Brand Name | 09 06 232 6845 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 20 |
| Quantity Interval | 20 |
| Country of origin | RO |
| Number of poles | 32 |
| Material contact surface | Noble metal |
| Material of insulation | Thermoplast |
| Direction mating face | Standard |
| Coating plug contact area | Noble metal |
| Number of rows | 3 |
| Type of PCB contacting | THT connection (Wave soldering) |
| Grid dimensions 1 (mm) | 3.81 |
| Grid dimensions 2 (mm) | 5.08 |
| Assembly | With fixing flange |
| Pin length (mm) | 4.5 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 6 |
| Temperature Range | -55 to 125 Deg. C |
