09063482951
09063482951
Harting

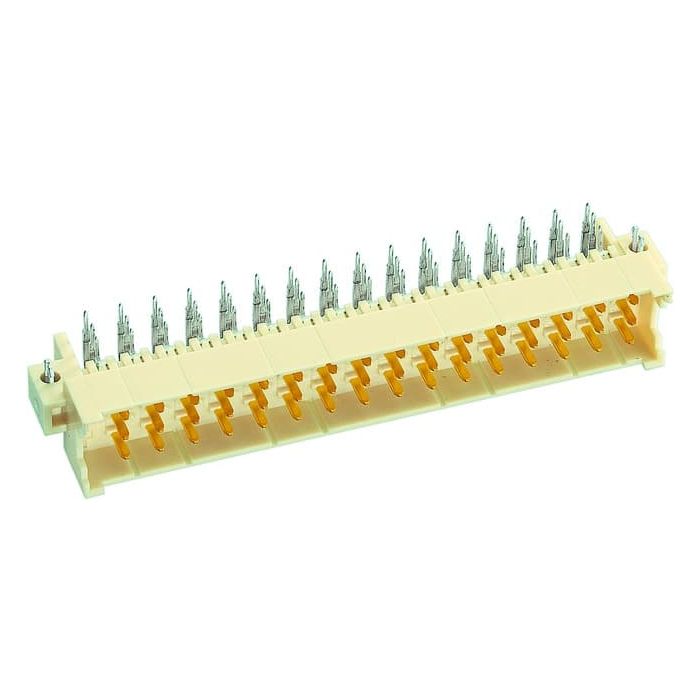

DIN-Power F048MR-3,0C1-1-clip
Connectors, Male connector, Reflow soldering termination (THR), Rated current:6 A, Contacts: 48, Angled, Copper alloy, Noble metal, Mating side, Sn over Ni, Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Hole coding, Shroud coding, Coding with loss of contacts, D20 coding, PCB fixing: With fixing flange, With snap-in clip, Thermoplastic resin, glass-fibre filled, Beige
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | F male |
| Product Family | DIN Power |
| Product Brand Name | 09 06 348 2951 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 20 |
| Quantity Interval | 20 |
| Country of origin | DE |
| Number of poles | 48 |
| Material contact surface | Noble metal |
| Material of insulation | Thermoplast |
| Direction mating face | turned |
| Coating plug contact area | Noble metal |
| Number of rows | 3 |
| Type of PCB contacting | THR connection |
| Grid dimensions 1 (mm) | 3.81 |
| Grid dimensions 2 (mm) | 2.54 |
| Assembly | With fixing flange |
| Suitable for printed circuit board thickness (mm) | 1.6 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 6 |
| Temperature Range | -55 to 125 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
