Harting

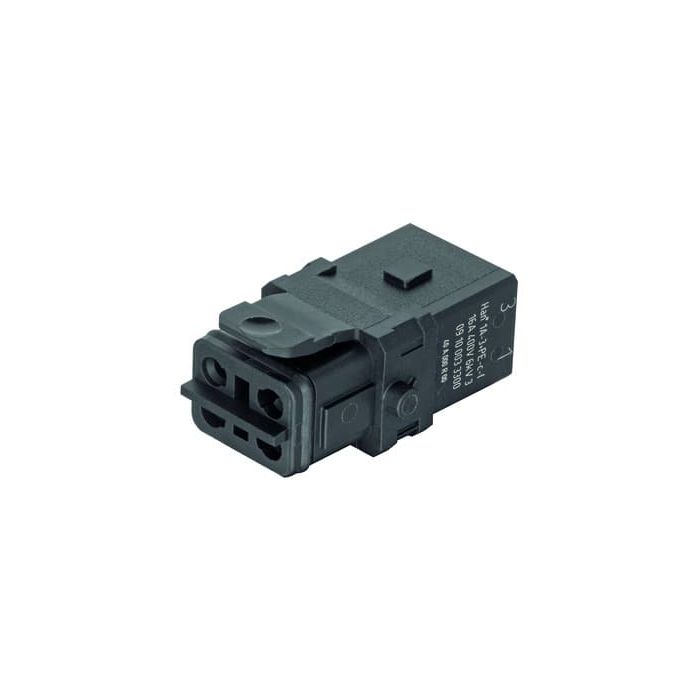

Han 1A-3+PE-c-f latch
Inserts, Crimp termination, Female, Polyamide (PA), RAL 9005 (jet black), Rated current:16 A, Size: 1 A, Contacts: 3, Conductor cross-section: 0.14...4 mm, Snap-in latches
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 438 Han 1A |
| Product Family | Han 1A Female Insert |
| Product Brand Name | 09 10 003 3300 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han® 1A |
| Size | 1 A |
| Number of poles | 3 |
| Insertion cycles minimum | 100 |
| PE connection present ? | Yes |
| Rated voltage (V) | 400 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 6 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 0.14…4 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 45545-2 |
| Current Rating (A) | 16 |
