09110006116
09110006116
Harting

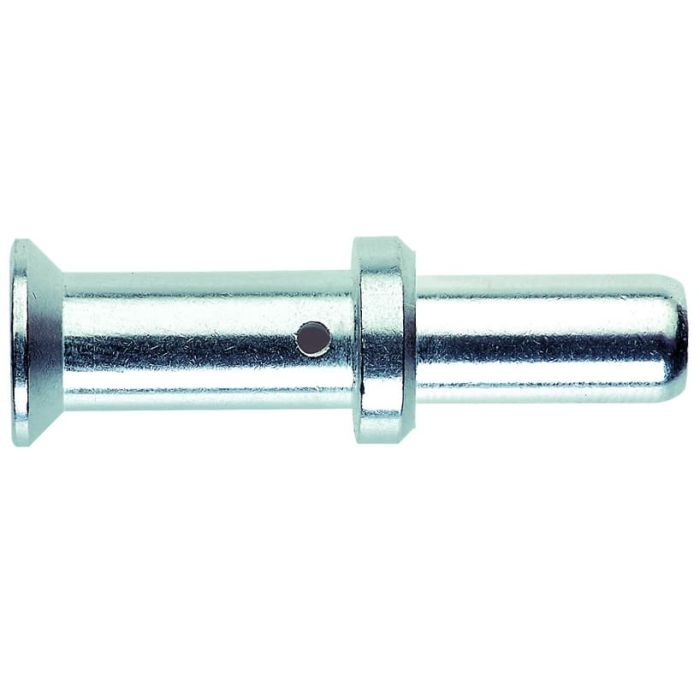

Han TC100 male contact 16mm
Crimp contact, Operating current: ≤100 A, Male, Copper alloy, Silver plated, Conductor cross-section: 16 mm
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 424 Han® High Current Connector |
| Product Family | Han HC Male Contact |
| Product Brand Name | 09 11 000 6116 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | DE |
| Manufacturer's Brand | TC 100 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500.0000 |
| Maximum operating ambient temperature (deg C) | 125.0000 |
| Contact type | turned |
| Insulation stripped length (mm) | 19.0000 |
| Contact design | Pin |
| Maximum connectable conductor cross section (mm2) | 16.0000 |
| Material contact | Other copper alloys |
| Standards | EN 60664-1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
