09120012662
09120012662
Harting

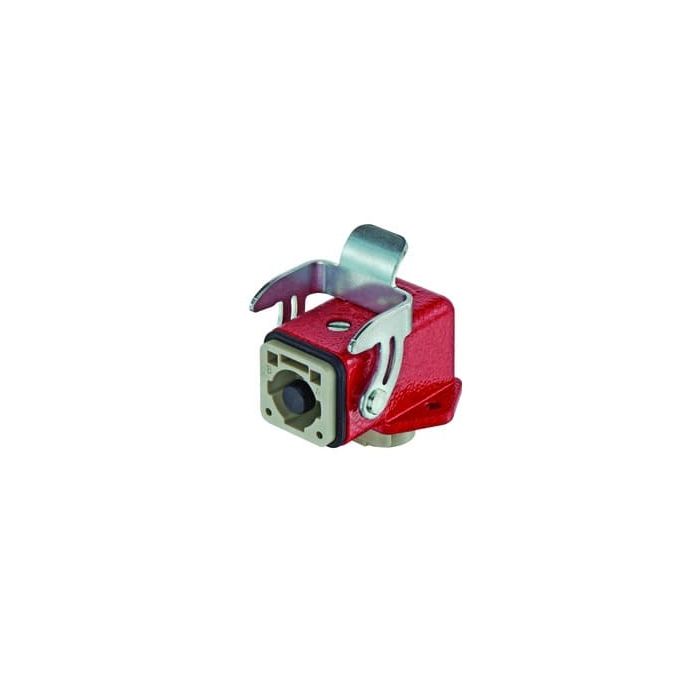

Han Q1/0-M/M with housing (HBMA, red)
Connector sets, Axial screw termination, Male, Rated current:100 A, Contacts: 1, Copper alloy, Silver plated, Bulkhead mounted housing, Size: 3 A, Single locking lever, Material: Zinc die-cast, Powder-coated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 408 Han® Q Connectors |
| Product Family | Han Q Male Insert |
| Product Brand Name | 09 12 001 2662 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® Q |
| Material housing | Zink print cast |
| Number of poles | 1.0000 |
| Material contact surface | Silver |
| Rated voltage (V) | 400.0000 |
| Contact design | Pin |
| Material of insulation | Polycarbonate (PC) |
| Rated_surge_voltage (V) | 6.0000 |
| Conductor connection method | Axial screw connection |
| Interlock type | Longitudinal strap |
| Housing surface finish | powder-coated |
| Locking present ? | Yes |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Seal present ? | Yes |
| Standards | EN 60664-1 |
| Current Rating (A) | 100.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
