Harting

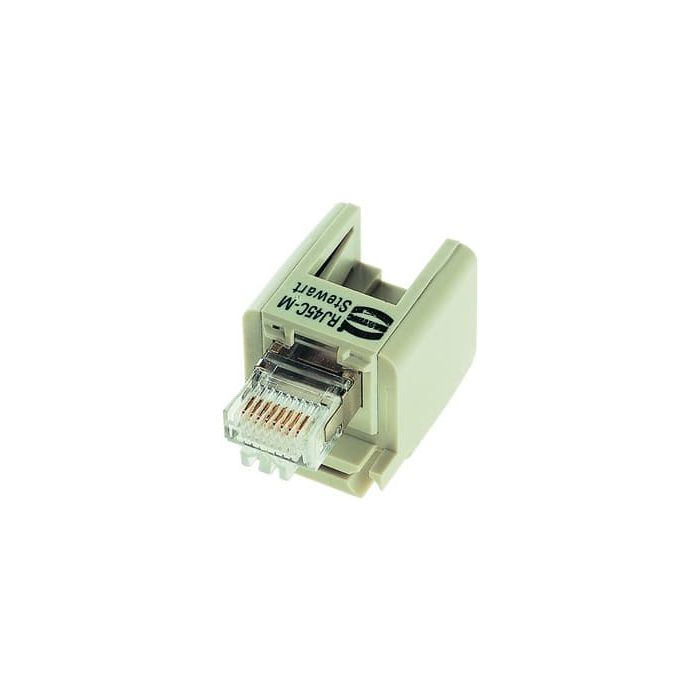

Han Brid-RJ45 C-M Stewart
Inserts, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:10 A, Size: 3 A, Contacts: 2, + RJ45
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 410 Han-Brid® |
| Product Family | Han Brid Male Insert |
| Product Brand Name | 09 12 003 3021 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Brid® |
| Size | 3 A |
| Number of poles | 2.0000 |
| Insertion cycles minimum | 500.0000 |
| Rated voltage (V) | 24.0000 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 0.8 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Pollution degree | 3.0000 |
| Fire resistance class | V0 |
| Standards | IEC 61984 |
| Current Rating (A) | 10.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
