09140010420
09140010420
Harting

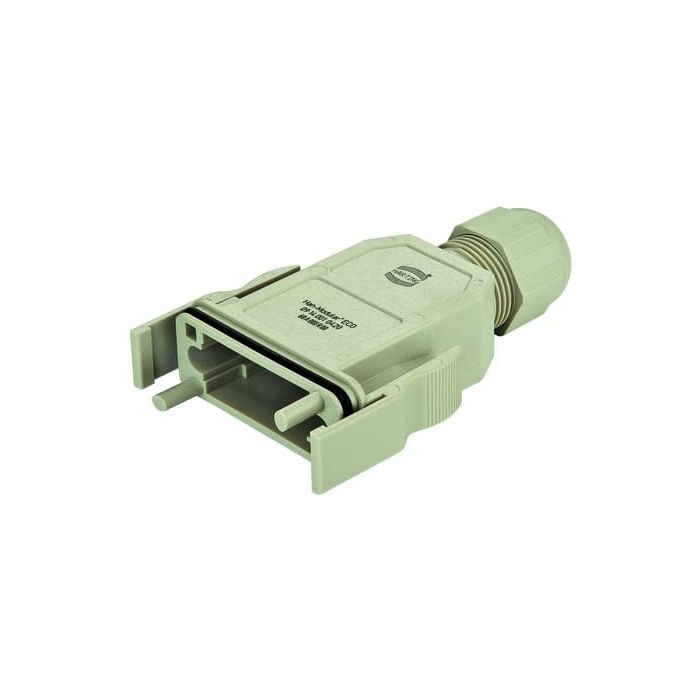

Han-Modular ECO hood IP65 (without PE)
Hood, With integrated cable gland, Size: Modular ECO, Snap-in latches, Top entry, 1x Integrated, Material (hood/housing): Polycarbonate (PC), RAL 7032 (pebble grey), Material (seal): NBR, Degree of protection: IP65
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Plastic |
| Product Brand Name | 09 14 001 0420 |
| Approvals | CE |
| Manufacturer | HARTING |
| Colour | Grey |
| Customs tariff number | 85389099 |
| Quantity Min | 2.0000 |
| Quantity Interval | 2.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® ECO |
| Size | Modular ECO |
| Standards | EN 60664-1 |
| Material housing | Plastic |
| Degree of protection - IP (mounted) | IP65 |
| Design of housing | Sleeve housing |
| Housing colour | Grey |
| Interlock type | Snap-in |
| Shackle position | Without |
| Size of connection thread | Integrated |
| Cable entry direction | vertical |
| Number of cable inlets | 1.0000 |
| Cable gland mounting method | Integrated |
| Screwed cable gland ? | Yes |
| Seal | Yes |
| Fire resistance class | V0 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
