09140012732
09140012732
Harting

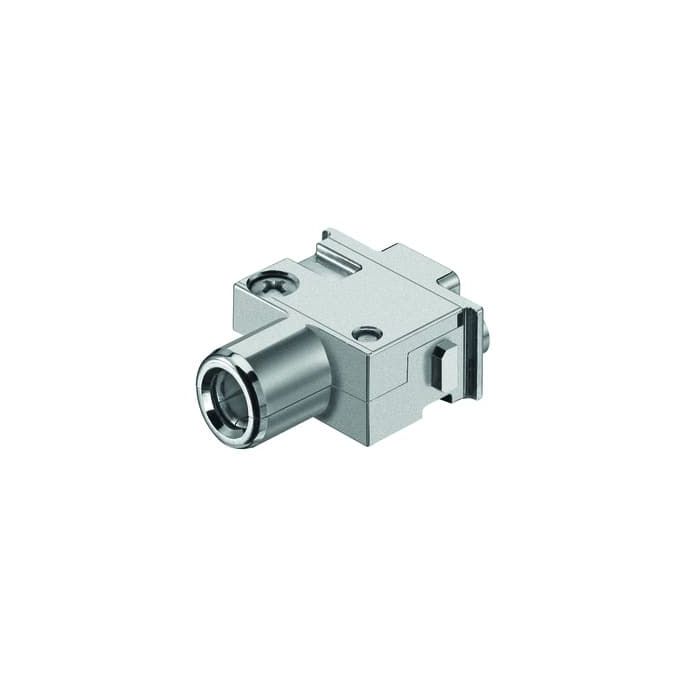

Han PE-module fem. axial 10-25qmm
Han® PE module, Axial screw termination, Female, Contacts: 1, Conductor cross-section: 10...25 mm, Zinc die-cast, nickel-plated, Copper alloy, Silver plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 001 2732 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 1.0000 |
| Material contact surface | Silver |
| Number of power contacts | 1.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | No |
| Contact type | Axial screw termination |
| Insulation stripped length (mm) | 13.0000 |
| Contact design | Socket |
| Conductor connection method | Axial screw connection |
| Conductor cross-section mm2 | 10…10 |
| Contact insert material | Zinc die-cast, nickel-plated |
| Material contact | Other copper alloys |
| Standards | IEC 61984 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
