09140013032
09140013032
Harting

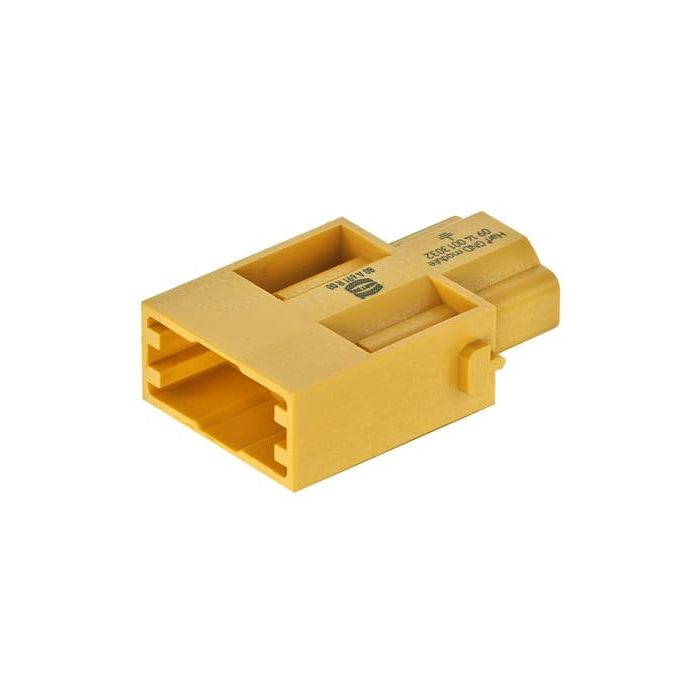

Han GND module, male
Inserts, Crimp termination, Axial screw termination, Male, Polycarbonate (PC), Yellow, Contacts: 1, Conductor cross-section: 10...35 mm
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 001 3032 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 2.0000 |
| Quantity Interval | 2.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® GND |
| Number of poles | 1.0000 |
| Insertion cycles minimum | 500.0000 |
| Contact design | Pin |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Conductor cross-section mm2 | 10…35 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
