09140023021
09140023021
Harting

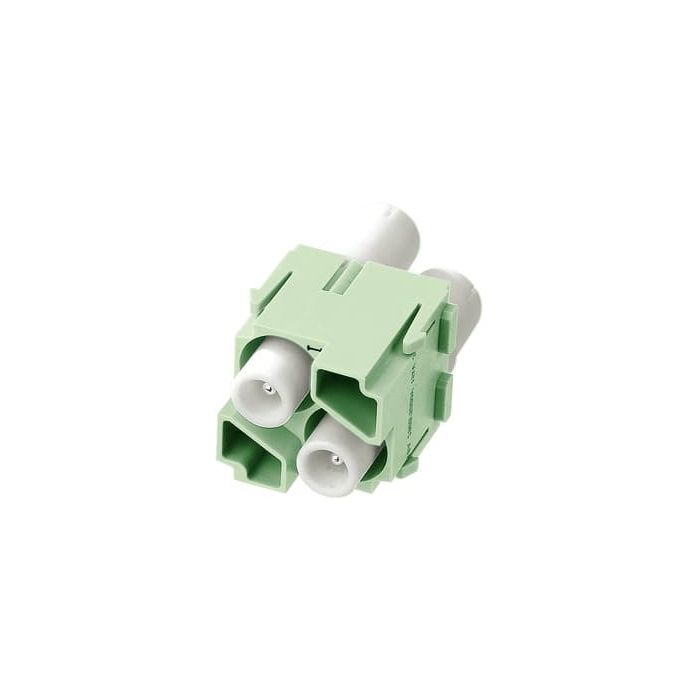

Han HV module, 16A 5000V male
Han® HV module, for Han E® crimp contacts, Crimp termination, Male, Contacts: 2, Conductor cross-section: 0.5...4 mm, Rated current:16 A, Polycarbonate / Teflon (PTFE), RAL 7032 (pebble grey)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 002 3021 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 2.0000 |
| Number of power contacts | 2.0000 |
| Insertion cycles minimum | 500.0000 |
| Contact type | Crimp termination |
| Contact design | Pin |
| Rated_surge_voltage (V) | 15.0000 |
| Conductor connection method | crimp connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.5…0.5 |
| Contact insert without contact ? | Yes |
| Contact insert material | Plastic |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 16.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
