09140033103
09140033103
Harting

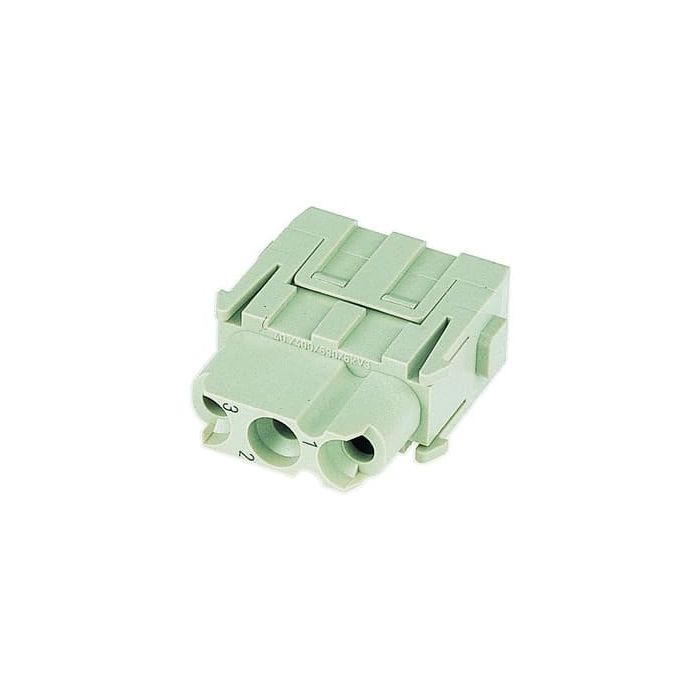

Han C module, crimp female (two part)
Han® C module, for increased tensile stress, Crimp termination, Female, Contacts: 3, Conductor cross-section: 1.5...6 mm, Rated current:40 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 003 3103 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 2.0000 |
| Quantity Interval | 2.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 3.0000 |
| Number of power contacts | 3.0000 |
| Insertion cycles minimum | 500.0000 |
| Rated voltage (V) | 500.0000 |
| Contact type | Crimp termination |
| Contact design | Socket |
| Rated_surge_voltage (V) | 6.0000 |
| Conductor connection method | crimp connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 1.5…1.5 |
| Contact insert without contact ? | Yes |
| Contact insert material | Plastic |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 40.0000 |
