Harting

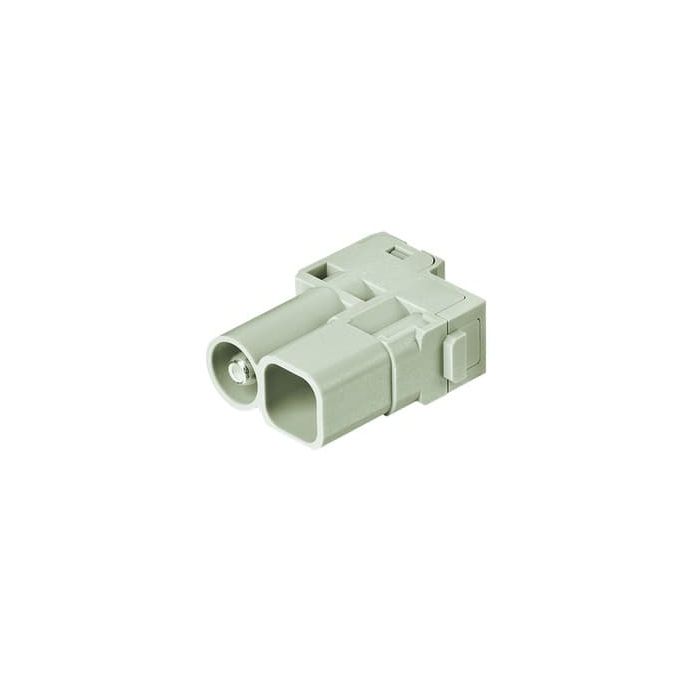

Han 70A Hybrid module, male 6-16mm
Han® 70 A Hybrid module, Axial screw termination / crimp termination, Male, Contacts: 1, + 4 additional signal contacts, Conductor cross-section: 6...16 mm, Rated current:70 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 005 2646 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 2.0000 |
| Quantity Interval | 2.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 1.0000 |
| Number of power contacts | 1.0000 |
| Insertion cycles minimum | 500.0000 |
| Rated voltage (V) | 1000.0000 |
| Contact type | Axial screw termination / crimp termination |
| Insulation stripped length (mm) | 11.0000 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 8.0000 |
| Conductor connection method | Axial screw connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 6…6 |
| Contact insert material | Plastic |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 70.0000 |
