09140063001
09140063001
Harting

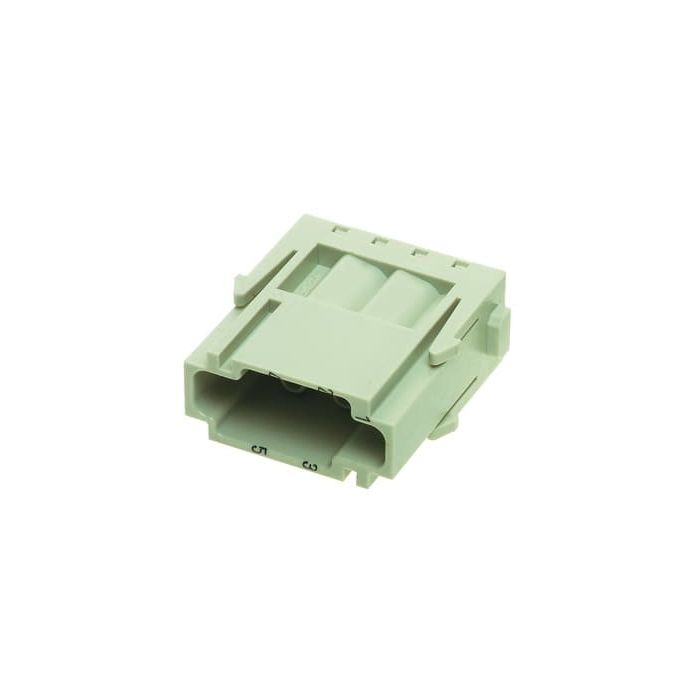

Han E module, crimp male
Han E® module, Crimp termination, Male, Contacts: 6, Conductor cross-section: 0.14...4 mm, Rated current:16 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 006 3001 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 2.0000 |
| Quantity Interval | 2.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 6.0000 |
| Number of power contacts | 6.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | No |
| Rated voltage (V) | 500.0000 |
| Contact type | Crimp termination |
| Contact design | Pin |
| Rated_surge_voltage (V) | 6.0000 |
| Conductor connection method | crimp connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.14…0.14 |
| Contact insert without contact ? | Yes |
| Contact insert material | Plastic |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 16.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
