Harting

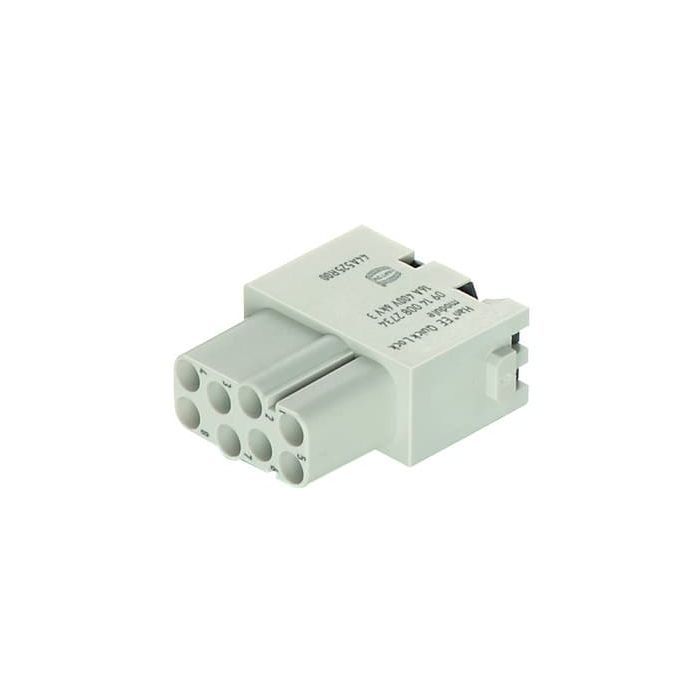

Han EE Quick-Lock module, female 1,5mm
Han® EE module, Han-Quick Lock® termination, Female, Contacts: 8, Conductor cross-section: 0.25...1.5 mm, Rated current:16 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 008 2734 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 2.0000 |
| Quantity Interval | 2.0000 |
| Country of origin | RO |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 8.0000 |
| Material contact surface | Silver |
| Number of power contacts | 8.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | No |
| Rated voltage (V) | 400.0000 |
| Contact type | Han-Quick Lock® termination |
| Insulation stripped length (mm) | 10.0000 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 6.0000 |
| Conductor connection method | Radial spring connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.25…0.25 |
| Contact insert material | Plastic |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 16.0000 |
