Harting

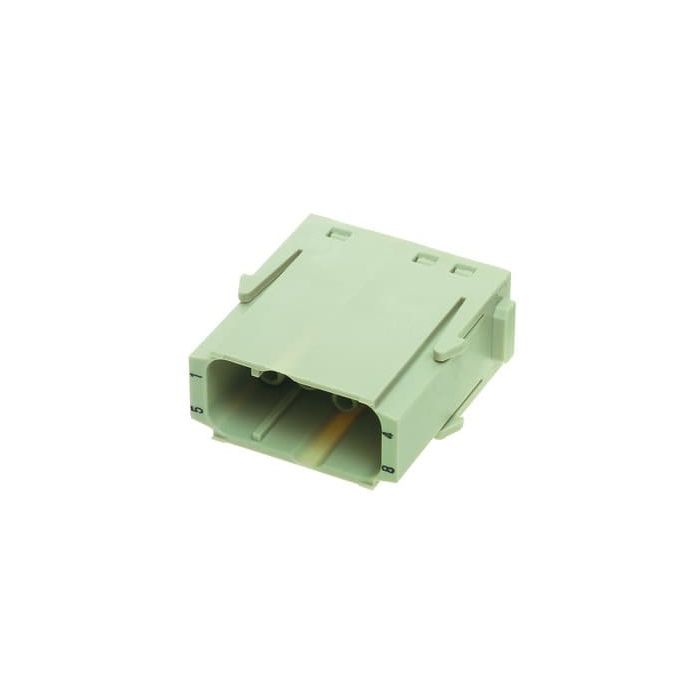

Han EE module, crimp male

Han® EE module, Crimp termination, Male, Contacts: 8, Conductor cross-section: 0.14...4 mm, Rated current:16 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Segment 407 Han-Modular®
Product Family Han-Modular Modules
Product Brand Name 09 14 008 3001
Manufacturer HARTING
Customs tariff number 85389099
Quantity Min 2.0000
Quantity Interval 2.0000
Country of origin DE
Manufacturer's Brand Han-Modular®
Number of poles 8.0000
Number of power contacts 8.0000
Insertion cycles minimum 500.0000
PE connection present ? No
Rated voltage (V) 400.0000
Contact type Crimp termination
Contact design Pin
Rated_surge_voltage (V) 6.0000
Conductor connection method crimp connection
Pollution degree 3.0000
Conductor cross-section mm2 0.14…0.14
Contact insert without contact ? Yes
Contact insert material Plastic
Fire resistance class V0
Standards EN 60664-1
Current Rating (A) 16.0000
