Harting

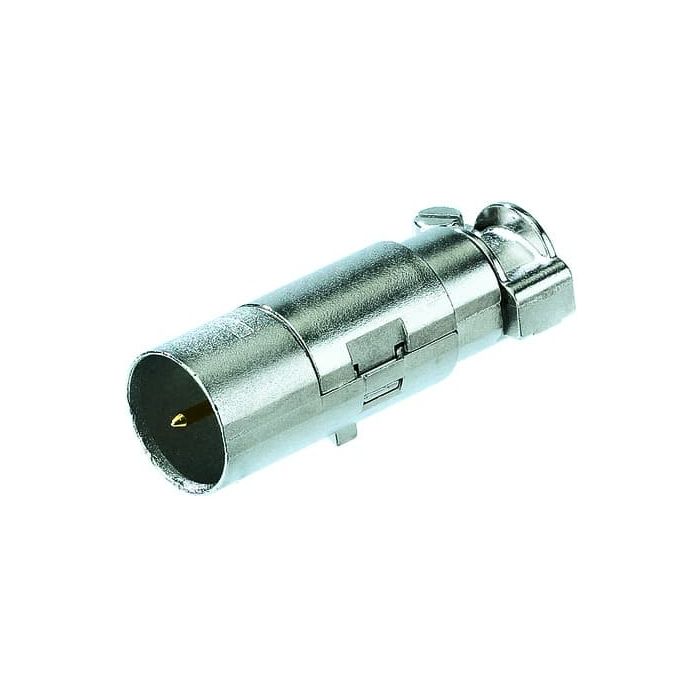

Han D Coax male
Crimp termination, Male, Contacts: 1, + shielding, Conductor cross-section: 0.14 ... 2.5 mm, Rated current:10 A, Polycarbonate (PC), RAL 7032 (pebble grey)
In stock
Attribute | Value |
---|---|
Product Segment | 407 Han-Modular® |
Product Family | Han-Modular Contacts |
Product Brand Name | 09 15 001 3013 |
Manufacturer | HARTING |
Customs tariff number | 85389099 |
Quantity Min | 1 |
Quantity Interval | 1 |
Country of origin | DE |
Manufacturer's Brand | Han® D Coax |
Number of poles | 1 |
Insertion cycles minimum | 500 |
Rated voltage (V) | 50 |
Screen connection present ? | Yes |
Contact type | Crimp termination |
Contact design | Pin |
Rated_surge_voltage (V) | 0.8 |
Wire protection present ? | No |
Pollution degree | 3 |
Conductor cross-section mm2 | 0.14…2.5 |
Contact insert without contact ? | Yes |
Contact insert material | Plastic |
Fire resistance class | V0 |
Standards | EN 60664-1 |
Current Rating (A) | 10 |
