09150073001
09150073001
Harting

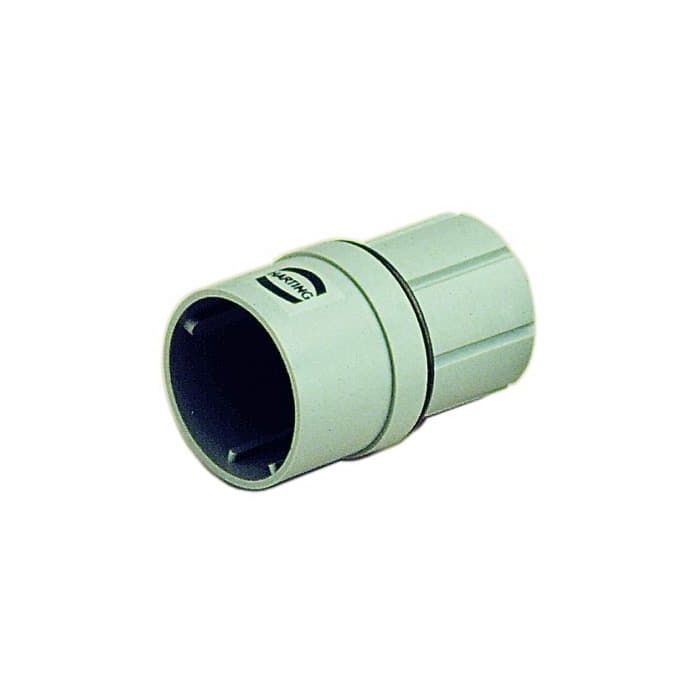

R 15-7+E-ISK-STI
Inserts, Crimp termination, Male, Polyamide (PA), RAL 7032 (pebble grey), Rated current:10 A, Contacts: 7
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 401 Han R15 hood/housings/inserts |
| Product Family | Han R 15 Male Insert |
| Product Brand Name | 09 15 007 3001 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 10.0000 |
| Quantity Interval | 10.0000 |
| Country of origin | DE |
| Manufacturer's Brand | R 15 |
| Current Rating (A) | 10.0000 |
| Number of poles | 7.0000 |
| Insertion cycles minimum | 500.0000 |
| Rated voltage (V) | 250.0000 |
| Contact design | Pin |
| Material of insulation | Polyamide |
| Rated_surge_voltage (V) | 4.0000 |
| Conductor connection method | crimp connection |
| Fire resistance class | HB |
| Attribute | Value |
|---|---|
