09151000702
09151000702
Harting

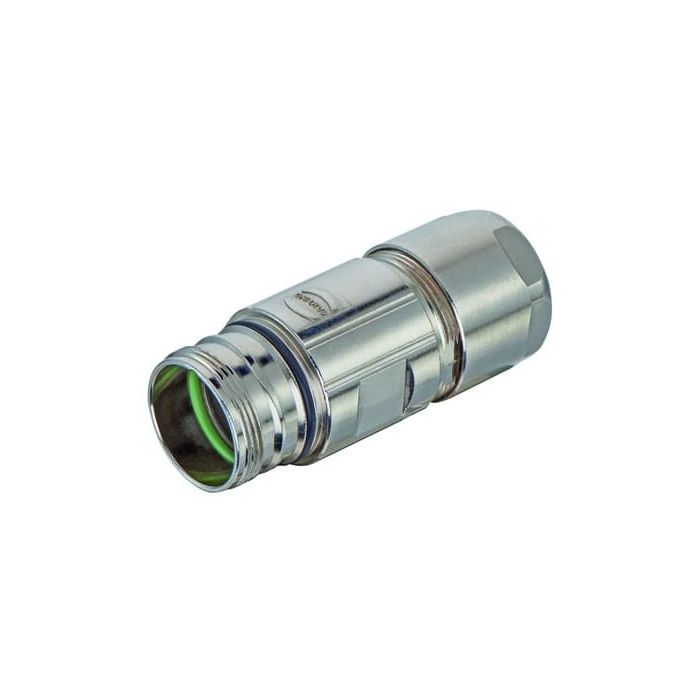

M23 Hood cable to cable 7-12 mm
Cable to cable housing, EMC version, Size: M23, Screw locking, ComLock rapid locking, Top entry, Material (hood/housing): Copper-zinc alloy, Nickel plated, Material (seal): NBR, Degree of protection: IP67, locked condition, IP69 / IPX9K acc. to ISO 20653, locked condition
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | M23 |
| Product Family | Circular Connectors |
| Product Brand Name | 09 15 100 0702 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 5.0000 |
| Quantity Interval | 5.0000 |
| Country of origin | DE |
| Material housing | Brass |
| Material housing surface | nickel-plated |
| Degree of protection - IP (mounted) | IP67 |
| Design of housing | Coupling housing |
| Interlock type | Threaded joint |
| Body size | M23 |
| Housing type | Coupler |
| Housing material | Brass |
| Housing surface material | Nickel |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
