09151006102
09151006102
Harting

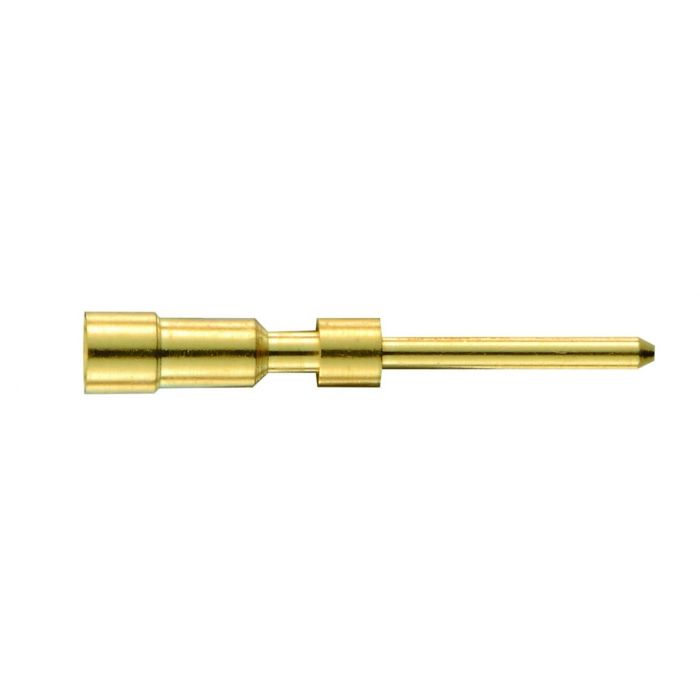

M23 male-c 1mm (0,14 – 1,00mm²) Au
Crimp contact, 1 mm, Operating current: ≤8 A, Male, Copper alloy, Gold plated, Conductor cross-section: 0.14...1 mm2, AWG 26 ... AWG 17
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | M23 |
| Product Family | Circular Connectors |
| Product Brand Name | 09 15 100 6102 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 100.0000 |
| Quantity Interval | 100.0000 |
| Country of origin | FR |
| Manufacturer's Brand | Circular connectors |
| Material contact surface | Gold |
| Contact type | turned |
| Insulation stripped length (mm) | 4.0000 |
| Contact design | Pin |
| Maximum connectable conductor cross section (mm2) | 1.0000 |
| Minimum connectable conductor cross section (mm2) | 0.14 |
| Material contact | Other copper alloys |
| Standards | EN 60664-1 |
| Body size | M23 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
