09151006201
09151006201
Harting

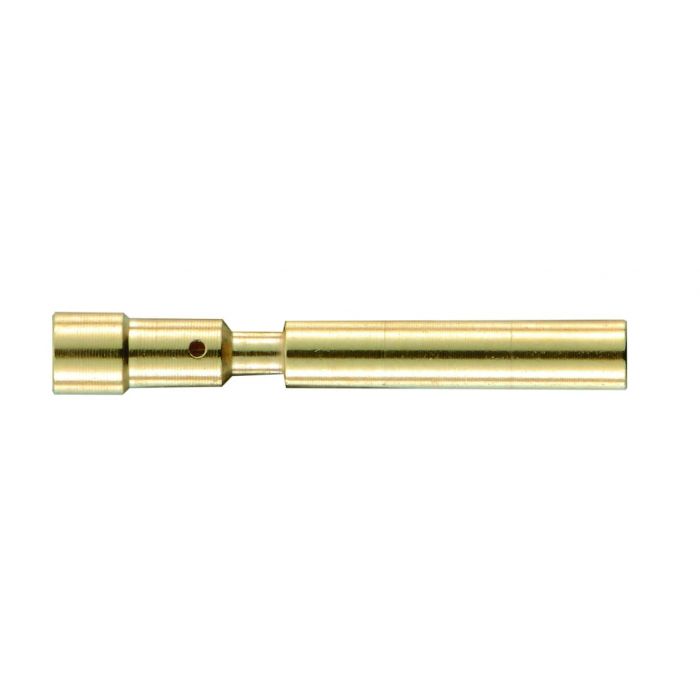

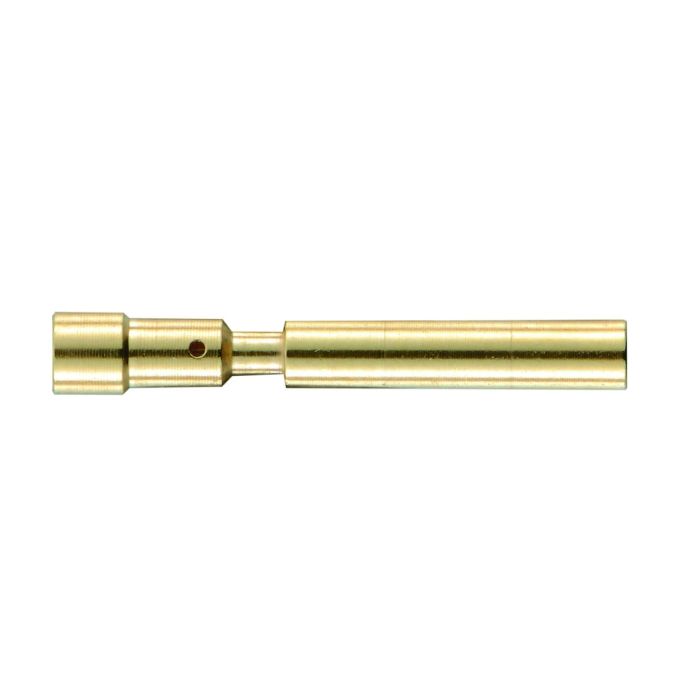

M23 female-c 1mm (0,08 – 0,56mm²) Au
Crimp contact, 1 mm, Operating current: ≤8 A, Female, Copper alloy, Gold plated, Conductor cross-section: 0.08...0.56 mm2, AWG 28 ... AWG 20
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | M23 |
| Product Family | Circular Connectors |
| Product Brand Name | 09 15 100 6201 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 100.0000 |
| Quantity Interval | 100.0000 |
| Country of origin | CH |
| Manufacturer's Brand | Circular connectors |
| Material contact surface | Gold |
| Contact type | turned |
| Insulation stripped length (mm) | 4.0000 |
| Contact design | Socket |
| Maximum connectable conductor cross section (mm2) | 0.56 |
| Minimum connectable conductor cross section (mm2) | 0.08 |
| Material contact | Other copper alloys |
| Standards | EN 60664-1 |
| Body size | M23 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
