09151062603
09151062603
Harting

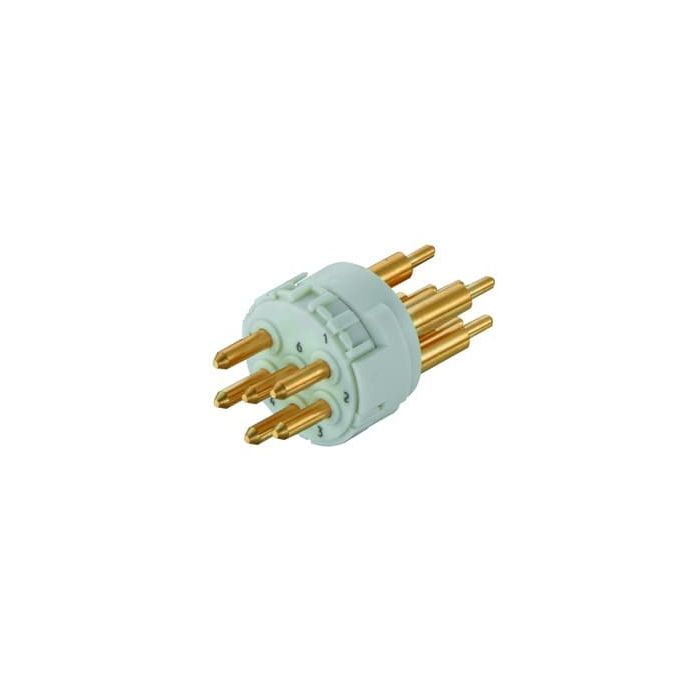

M23 06 Male -E
Inserts, PCB solder termination, Male, Polyamide (PA), White, Rated current:20 A, Contacts: 6, Copper alloy, Gold plated
In stock
Attribute | Value |
---|---|
Product Segment | M23 |
Product Family | Circular Connectors |
Product Brand Name | 09 15 106 2603 |
Manufacturer | HARTING |
Customs tariff number | 85366990 |
Quantity Min | 5 |
Quantity Interval | 5 |
Country of origin | DE |
Manufacturer's Brand | Circular connectors |
Number of poles | 6 |
Material contact surface | Gold |
Insertion cycles minimum | 500 |
Rated voltage (V) | 300 |
Contact design | Pin |
Material of insulation | Polyamide |
Rated_surge_voltage (V) | 2.5 |
Conductor connection method | Soldered connection |
Material contact | Other copper alloys |
Fire resistance class | V0 |
Current Rating (A) | 20 |
Body size | M23 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
