09151062702
09151062702
Harting

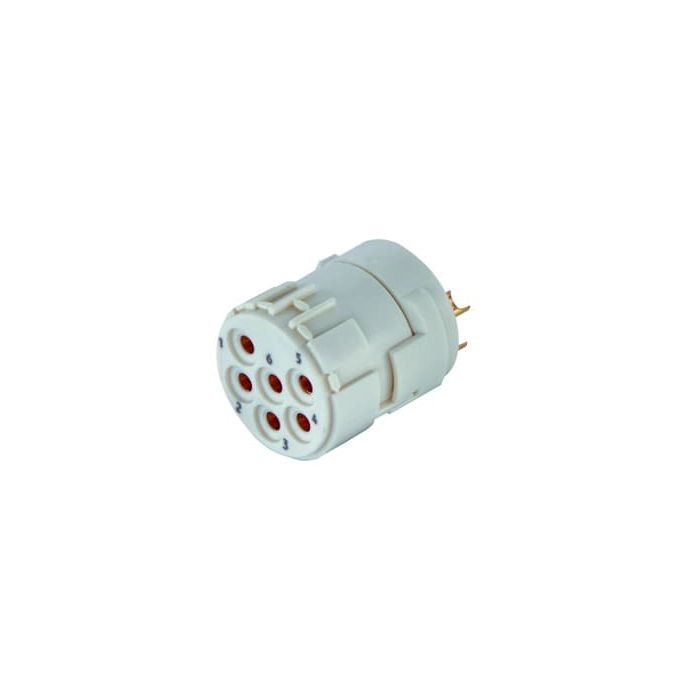

M23 06 Female -L
Inserts, Solder termination, Female, Polyamide (PA), White, Rated current:20 A, Contacts: 6, Conductor cross-section: 2.5 mm2 max., Copper alloy, Gold plated
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | M23 |
| Product Family | Circular Connectors |
| Product Brand Name | 09 15 106 2702 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 5 |
| Quantity Interval | 5 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Number of poles | 6 |
| Material contact surface | Gold |
| Insertion cycles minimum | 500 |
| Rated voltage (V) | 300 |
| Contact design | Socket |
| Maximum connectable conductor cross section (mm2) | 2.5 |
| Material of insulation | Polyamide |
| Rated_surge_voltage (V) | 2.5 |
| Conductor connection method | Soldered connection |
| Conductor cross-section mm2 | 2.5 max |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 20 |
| Body size | M23 |
| Attribute | Value |
|---|---|
