09151073101
09151073101
Harting

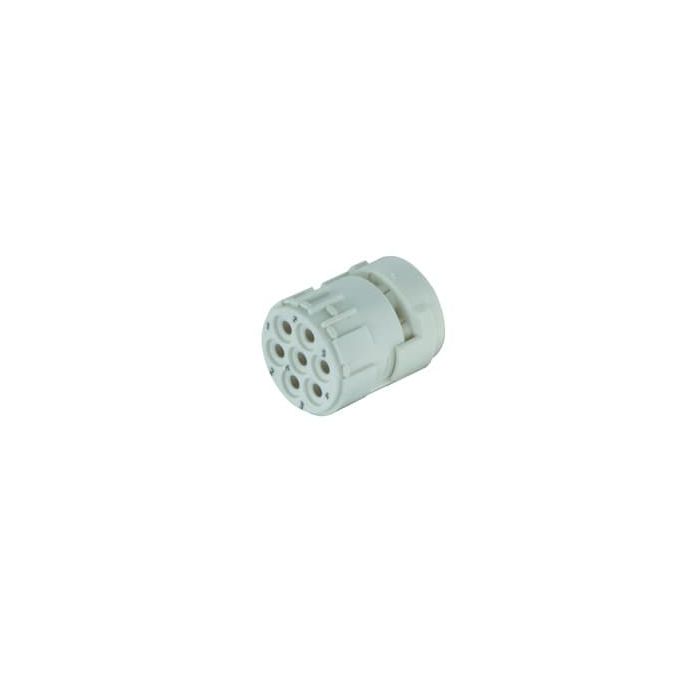

M23 07 Female -C
Inserts, Crimp termination, Female, Polyamide (PA), White, Rated current:20 A, Contacts: 7, Conductor cross-section: 0.75...2.5 mm2
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | M23 |
| Product Family | Circular Connectors |
| Product Brand Name | 09 15 107 3101 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 5.0000 |
| Quantity Interval | 5.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Number of poles | 7.0000 |
| Insertion cycles minimum | 500.0000 |
| Rated voltage (V) | 300.0000 |
| Contact design | Socket |
| Maximum connectable conductor cross section (mm2) | 2.5 |
| Minimum connectable conductor cross section (mm2) | 0.75 |
| Material of insulation | Polyamide |
| Rated_surge_voltage (V) | 2.5 |
| Conductor connection method | crimp connection |
| Conductor cross-section mm2 | 0.75…2.5 |
| Fire resistance class | V0 |
| Current Rating (A) | 20.0000 |
| Body size | M23 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
