09151172703
09151172703
Harting

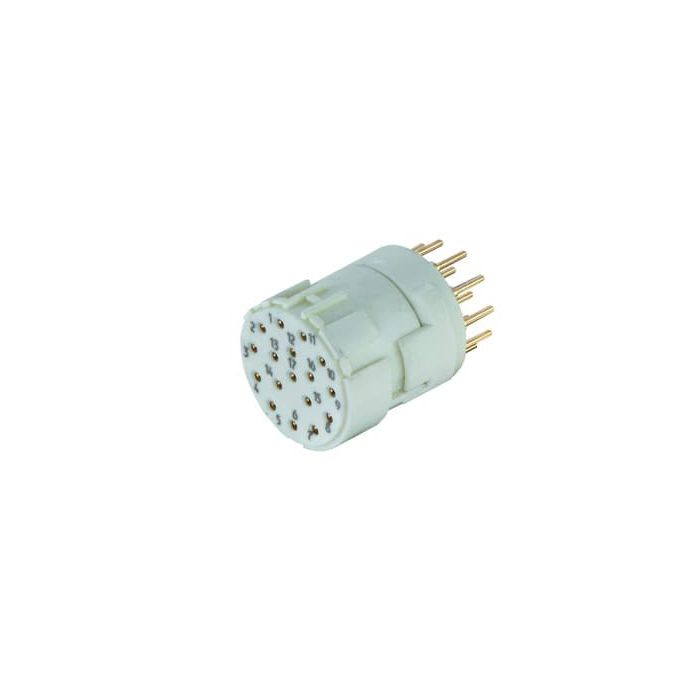

M23 17 Female -soldered contact
Inserts, PCB solder termination, Female, Polyamide (PA), White, Rated current:8 A, Contacts: 17, Copper alloy, Gold plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | M23 |
| Product Family | Circular Connectors |
| Product Brand Name | 09 15 117 2703 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 5.0000 |
| Quantity Interval | 5.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Number of poles | 17.0000 |
| Material contact surface | Gold |
| Insertion cycles minimum | 500.0000 |
| Rated voltage (V) | 160.0000 |
| Contact design | Socket |
| Material of insulation | Polyamide |
| Rated_surge_voltage (V) | 1.5 |
| Conductor connection method | Soldered connection |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Current Rating (A) | 8.0000 |
| Body size | M23 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
