09151192602
09151192602
Harting

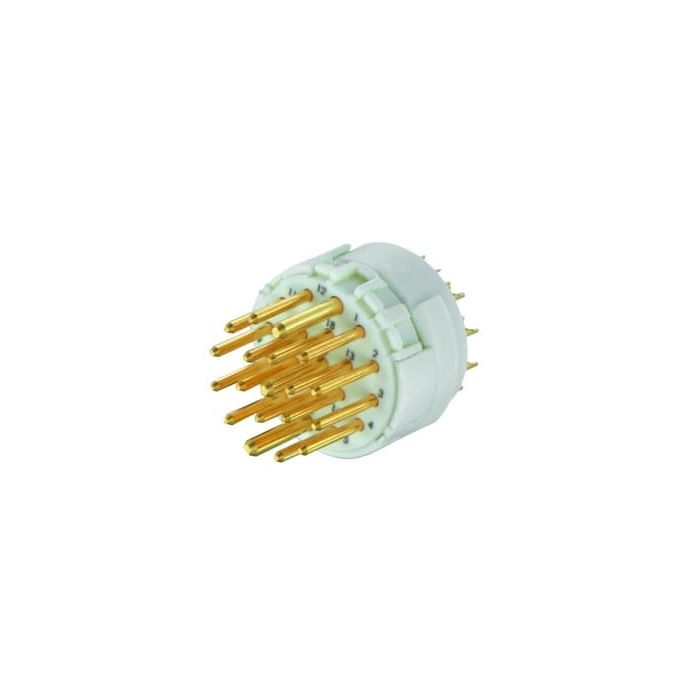

M23 19 Male -solder (termination)
Inserts, Solder termination, Male, Polyamide (PA), White, Contacts: 19, Conductor cross-section: 1 mm2 max., Copper alloy, Gold plated
In stock
| Attribute | Value |
|---|---|
| Product Segment | M23 |
| Product Family | Circular Connectors |
| Product Brand Name | 09 15 119 2602 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 5 |
| Quantity Interval | 5 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Number of poles | 19 |
| Material contact surface | Gold |
| Insertion cycles minimum | 500 |
| Contact design | Pin |
| Maximum connectable conductor cross section (mm2) | 1 |
| Material of insulation | Polyamide |
| Conductor connection method | Soldered connection |
| Conductor cross-section mm2 | 1 max |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Body size | M23 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
