09151192603
09151192603
Harting

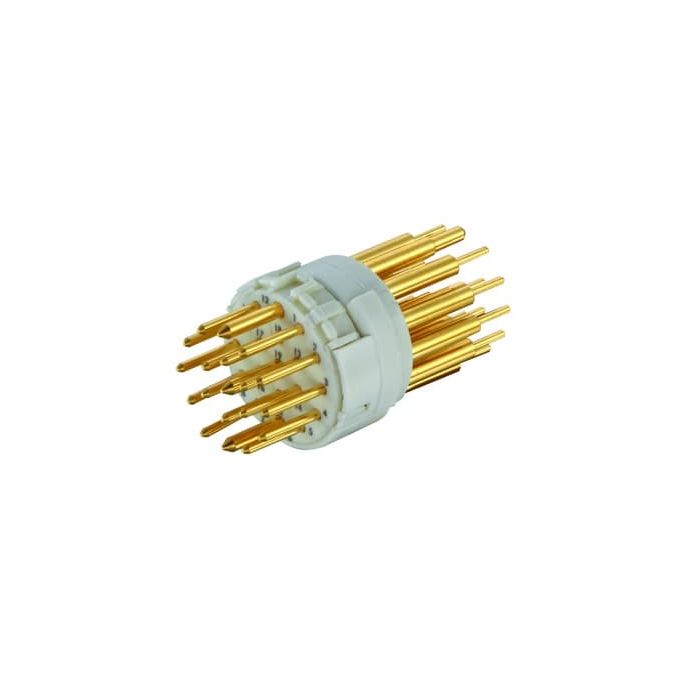

M23 19 Male -soldered contact
Inserts, PCB solder termination, Male, Polyamide (PA), White, Contacts: 19, Copper alloy, Gold plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | M23 |
| Product Family | Circular Connectors |
| Product Brand Name | 09 15 119 2603 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 5.0000 |
| Quantity Interval | 5.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Number of poles | 19.0000 |
| Material contact surface | Gold |
| Insertion cycles minimum | 500.0000 |
| Contact design | Pin |
| Material of insulation | Polyamide |
| Conductor connection method | Soldered connection |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Body size | M23 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
