09156009103
09156009103
Harting

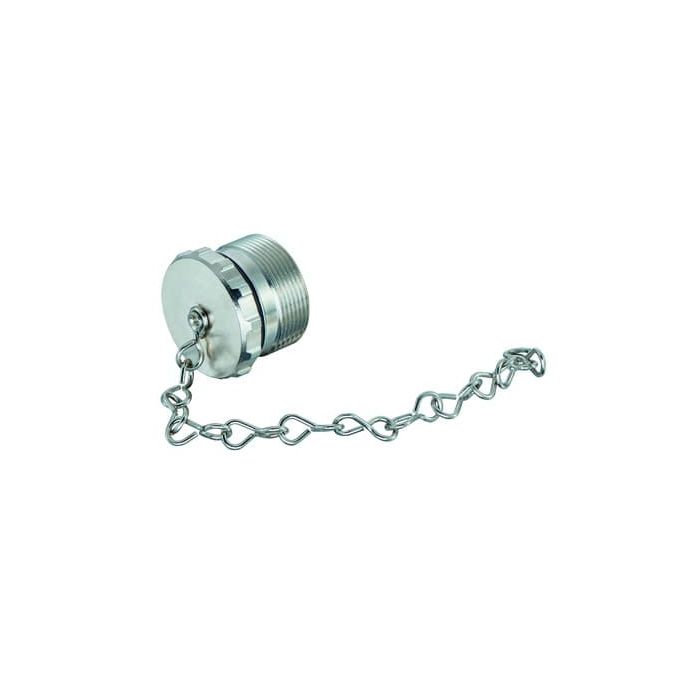

M23 cover–s met for hood,chain 100mm
Cover, for hoods, With chain (100 mm), Size: M23, Screw locking, Material (hood/housing): Copper-zinc alloy, Nickel plated, Degree of protection: IP67 / IP69 / IPX9K acc. to ISO 20653, locked condition
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | M23 |
| Product Family | Circular Connectors |
| Product Brand Name | 09 15 600 9103 |
| Manufacturer | HARTING |
| Customs tariff number | 74199990 |
| Quantity Min | 5.0000 |
| Quantity Interval | 5.0000 |
| Country of origin | DE |
| Size | M23 |
| Material housing | Brass |
| Degree of protection - IP (mounted) | IP67 / IP69 / IPX9K acc. to ISO 20653 |
| Maximum operating ambient temperature (deg C) | 125.0000 |
| Interlock type | Screw |
| Housing surface finish | nickel-plated |
| Locking present ? | Yes |
| Captivity element present ? | Yes |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
