Harting

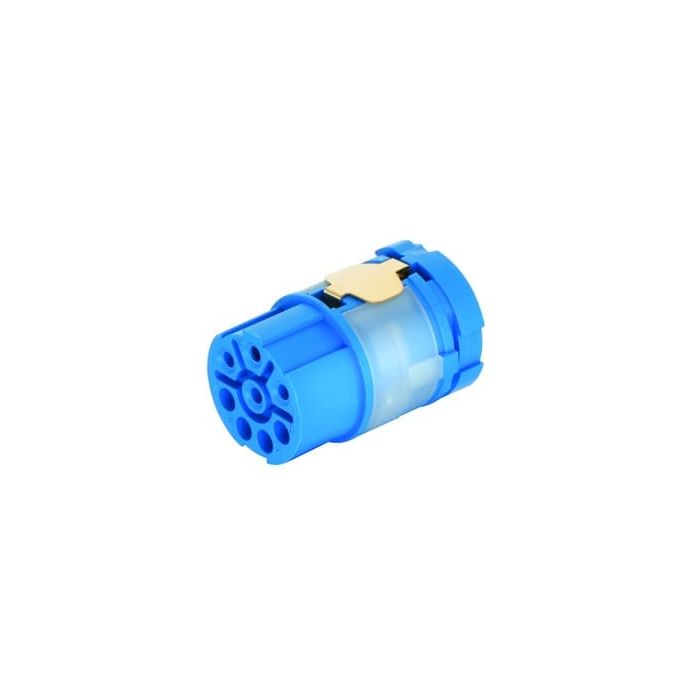

M23 P 4+3+PE Female -C
Inserts, Crimp termination, Female, Polyamide (PA), Blue, Contacts: 8, PE contact, Conductor cross-section: 0.14...4 mm2
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | M23 |
| Product Family | Circular Connectors |
| Product Brand Name | 09 15 608 3101 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 5.0000 |
| Quantity Interval | 5.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Circular connectors |
| Number of poles | 8.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | No |
| Contact design | Socket |
| Maximum connectable conductor cross section (mm2) | 4.0000 |
| Minimum connectable conductor cross section (mm2) | 0.14 |
| Material of insulation | Polyamide |
| Conductor connection method | crimp connection |
| Conductor cross-section mm2 | 0.14…4 |
| Fire resistance class | V0 |
| Body size | M23 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
