09160403001
09160403001
Harting

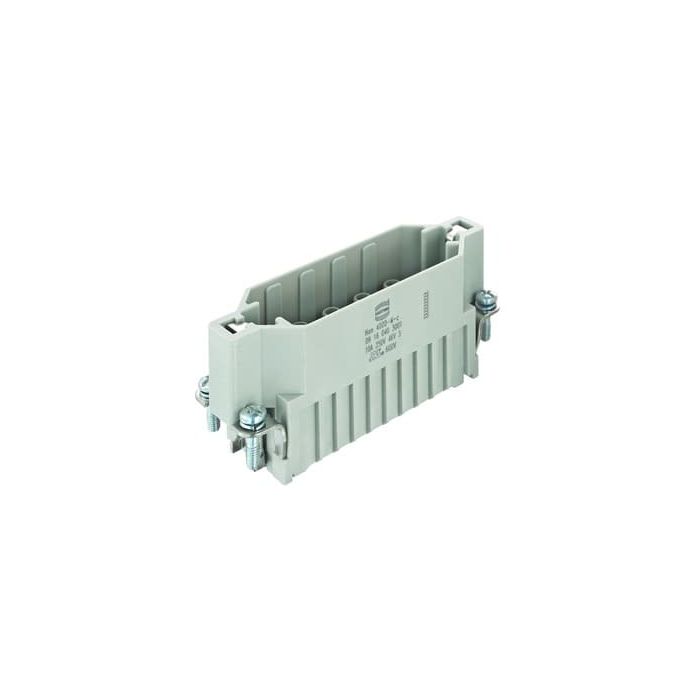

Han 40DD M-c
Inserts, Crimp termination, Male, RAL 7032 (pebble grey), Rated current:10 A, Size: 16 A, Contacts: 40, Conductor cross-section: 0.14...2.5 mm
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 402 Han DD® / DDD |
| Product Family | Han DD Male Insert |
| Product Brand Name | 09 16 040 3001 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | CN |
| Manufacturer's Brand | Han DD® |
| Size | 16 A |
| Number of poles | 40.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | Yes |
| Rated voltage (V) | 250.0000 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 4.0000 |
| Wire protection present ? | No |
| Conductor connection method | crimp connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.14…2.5 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 10.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
