Harting

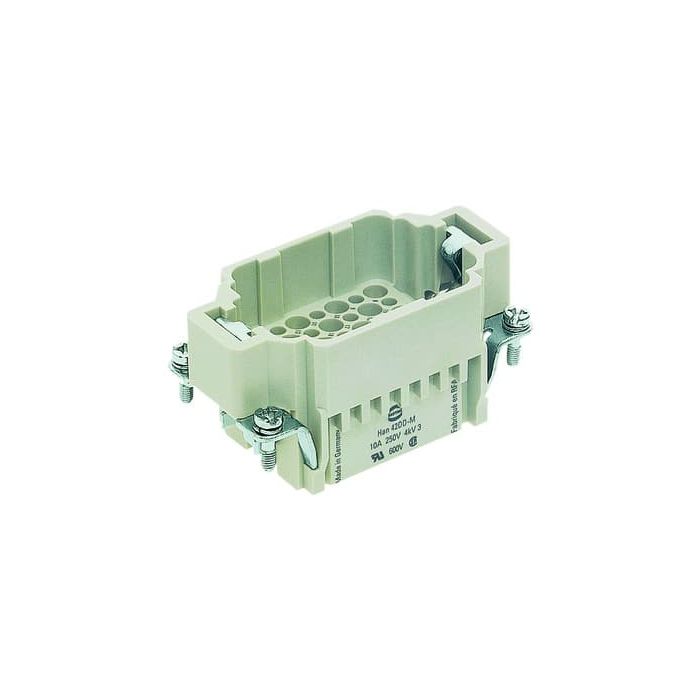

Han 42DD-HMC-M-c
Inserts, Crimp termination, Male, RAL 7032 (pebble grey), Rated current:10 A, Size: 10 B, Contacts: 42, Conductor cross-section: 0.14...2.5 mm
In stock
| Attribute | Value |
|---|---|
| Product Segment | 402 Han DD® / DDD |
| Product Family | Han DD Male Insert |
| Product Brand Name | 09 16 242 3001 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han DD® |
| Size | 10 B |
| Number of poles | 42 |
| PE connection present ? | Yes |
| Rated voltage (V) | 250 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 4 |
| Wire protection present ? | No |
| Conductor connection method | crimp connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 0.14…2.5 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 10 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
