09181509422
09181509422
Harting

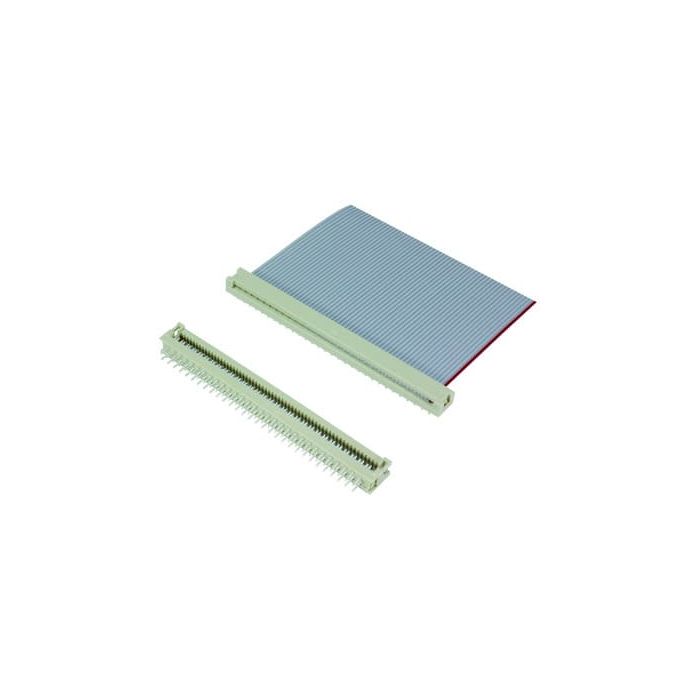

SEK 2R 50P Kinked pre-assy cover W/O SR
PCB transition connectors, Solder termination, IDC termination, Rated current:2.6 A, Thermoplastic resin (PBT), Grey, Contacts: 50, Copper alloy, Sn over Ni, Termination side, Sn over Ni, Mating side
In stock
| Attribute | Value |
|---|---|
| Product Segment | SEK DIP / PCB |
| Product Family | SEK |
| Product Brand Name | 09 18 150 9422 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 100 |
| Quantity Interval | 100 |
| Country of origin | CN |
| Number of poles | 50 |
| Material of insulation | Polybutylene terephthalate |
| Coating plug contact area | Tin (Sn) |
| Number of rows | 2 |
| Actuating element colour | 0 |
| Grid dimensions 1 (mm) | 1.27 |
| Grid dimensions 2 (mm) | 2.54 |
| Assembly | Other |
| Conductor contact area coating | Tin (Sn) |
| Connection conductor type | Soldered connection |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | IEC 60603-13 |
| Current Rating (A) | 2.6 |
| Temperature Range | -55 to 105 Deg. C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
